BMW R nine T Scrambler (2016) technical specifications

BMW R nine T Scrambler technical specifications

BMW R nine T Scrambler is produced in 2016. Engine is Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder, central balancer shaft, Euro4 compliant, displacement 1170 mm / 71.4 cu in , produces power 82 kW / 110 hp @ 7750 rpm and 115 Nm / 11.7 kgf-m / 85 lb-ft @ 6000 rpm. BMW R nine T Scrambler wet weight is 220 kg / 485 lbs. BMW R nine T Scrambler has 7 photos.

Technical specifications

+ Add to 'Compare list'
Model: R nine T Scrambler
Years: 2016
Engine: Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder, central balancer shaft, Euro4 compliant
Capacity: 1170 mm / 71.4 cu in
Bore x Stroke: 101 x 73 mm
Cooling System: Air/Oil cooled
Compression Ratio: 12.0:1
Lubrication: Wet sump

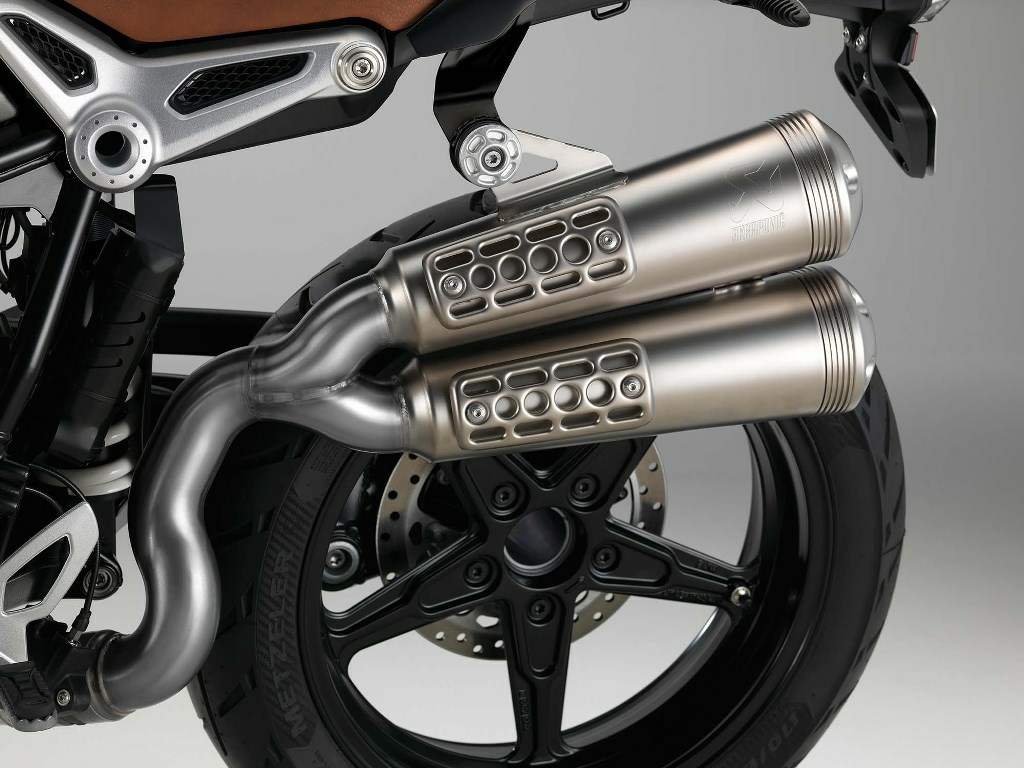

Exhaust: Twin exhaust, high, vertically paired mufflers
Induction: Electronic intake pipe injection
Starting: Electric
Max Power: 82 kW / 110 hp @ 7750 rpm
Max Torque: 115 Nm / 11.7 kgf-m / 85 lb-ft @ 6000 rpm
Clutch: Single dry plate clutch, hydraulically operated
Transmission: Constant mesh 6-speed
Final Drive: Shaft
Frame: Modular frame with replaceable rear sub-frame
Front Suspension: Right-way-up 43mm forks with gaiters
Front Wheel Travel: 125 mm / 4.9"
Rear Suspension: Paralever single-sided swinging arm
Rear Wheel Travel: 125 mm / 4.9"
Front Brakes: Dual 320 mm discs, 4 piston calipers
Rear Brakes: Single 265 mm disc, 2 piston floating caliper
Front Wheel: Cast or cross-spoked
Rear Wheel: Cast or cross-spoked
Front Tyre: 120/70-19
Rear Tyre: 170/60-17
Wet Weight: 220 kg / 485 lbs
Fuel Capacity: 17 L / 4.5 US gal
