BMW R 62 (1928-29) technical specifications

BMW R 62 technical specifications

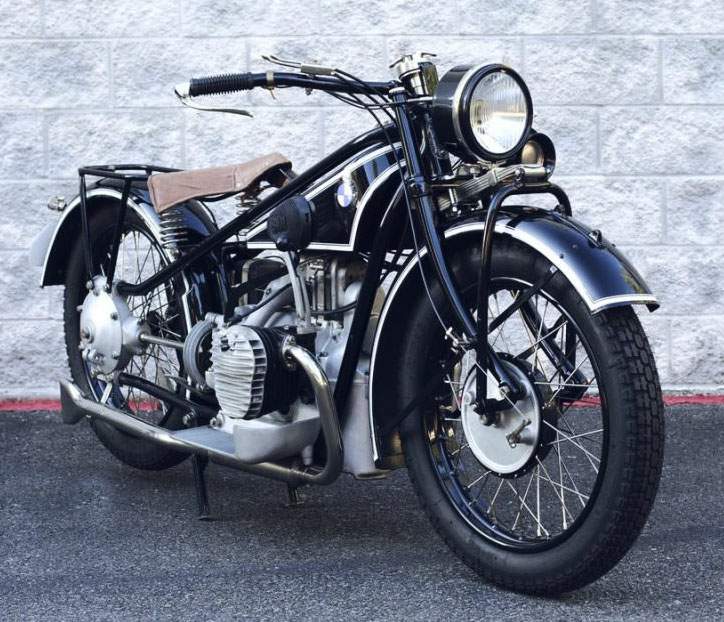

BMW R 62 is produced in 1928-29. Engine is Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder., displacement 745 cc / 45.5 cu in. , produces power 13.4 kW / 18 hp @ 3400 rpm. BMW R 62 wet weight is 155 kg / 351 lb. BMW R 62 has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: R 62
Years: 1928-29
Engine: Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Capacity: 745 cc / 45.5 cu in.
Bore x Stroke: 78 x 78 mm
Compression Ratio: 5.5:1
Cooling System: Air cooled
Induction: 1 x Spezial 2 valve ∅24 mm carburetor
Ignition / Starting: Bosch high voltage magneto ignition
Starting: Kick
Clutch: Single plate, dry
Max Power: 13.4 kW / 18 hp @ 3400 rpm
Transmission / Drive: 3 Speed
Gear Ratio: 1st 2.83 / 2nd 1.55 / 3rd 1.08:1
Frame: Twin loop steel tubular frame
Front Suspension: Plate spring, 6 laminae
Rear Suspension: Rigid, spring loaded saddle
Front Brakes: ∅200mm Drum
Rear Brakes: External shoe brake at the gearing on Cardan shaft
Front Tyre: 26 x 3.5" or 19 x 3.0" or 27 x 2.75" or 21 x 2.5"
Rear Tyre: 26 x 3.5" or 19 x 3.0" or 27 x 2.75" or 21 x 2.5"
Wet-Weight: 155 kg / 351 lb
Fuel Capacity: 12.5 liters / 3.3 US gal
