BMW R 6 (1937) technical specifications

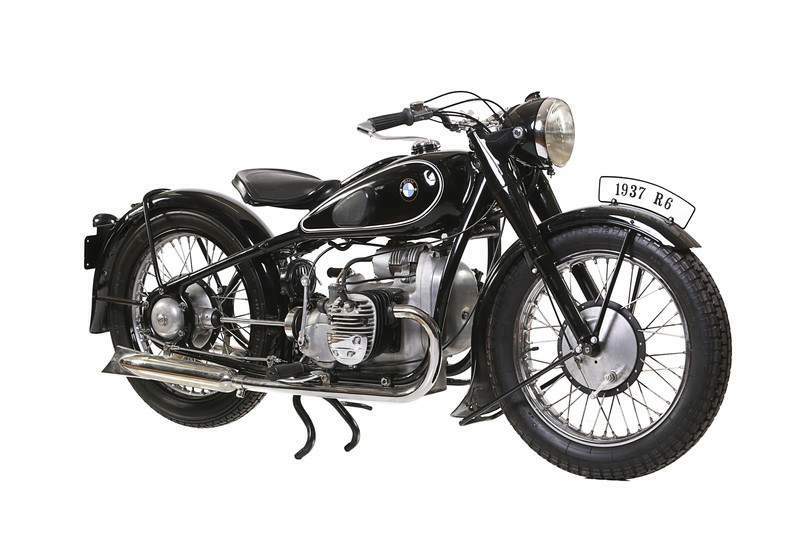

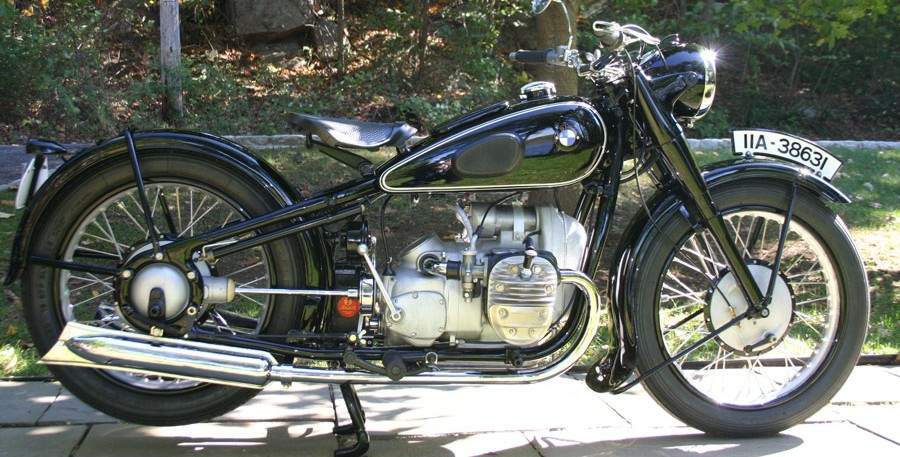

BMW R 6 is produced in 1937. Engine is Four stroke, two cylinder flat twin, side valve, displacement 600 cc / 36.6 cu in , produces power 13.4 kW / 18 hp @ 4500 rpm. BMW R 6 wet weight is 175 kg / 386 lbs. BMW R 6 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | R 6 |
| Years: | 1937 |
| Engine: | Four stroke, two cylinder flat twin, side valve |
| Capacity: | 600 cc / 36.6 cu in |
| Bore x Stroke: | 70 x 78 mm |
| Compression Ratio: | 6.0:1 |
| Induction: | 2 x Carburetors, type Amal M 75/426/S |
| Ignition: | Battery ignition |
| Starting: | Kick |
| Generator: | Bosch RD 45/6 2800 RS 15 |
| Clutch: | Single plate, dry |
| Max Power: | 13.4 kW / 18 hp @ 4500 rpm |
| Transmission: | 4 Speed |
| Final Drive: | Shaft |
| Gear Ratio: | 1st 3.6 / 2nd 2.28 / 3rd 1.70 / 4th 1.30:1 |
| Frame: | Twin loop pressed steel frame |
| Front Suspension: | Telescopic fork |
| Rear Suspension: | Rigid, spring loaded saddle |
| Front Brake: | ∅200mm Drum |
| Rear Brakes: | ∅200mm Drum |
| Front Tyre: | 3.00 x 19" |
| Rear Tyre: | 3.50 x 19" |
| Wet-Weight: | 175 kg / 386 lbs |
| Fuel Capacity: | 15 L / 4.0 US gal |
