BMW R 35 (1937-40) technical specifications

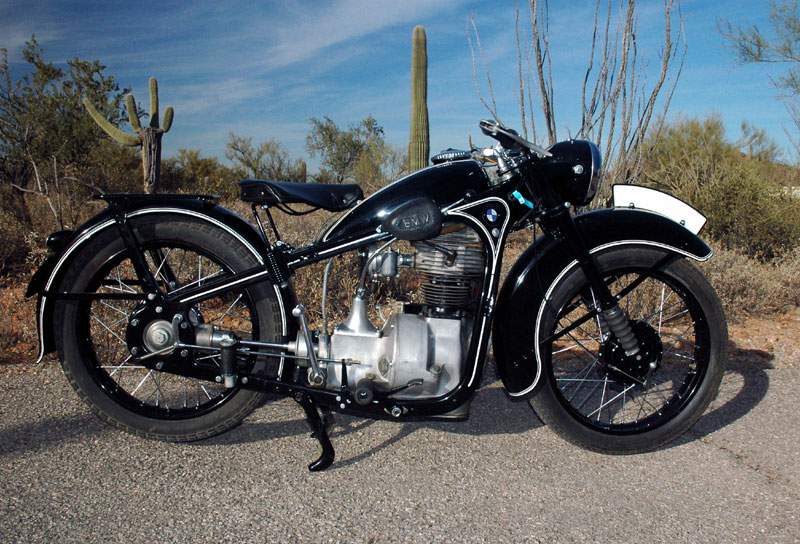

BMW R 35 is produced in 1937-40. Engine is Four stroke, single cylinder vertical, OHV, displacement 342 cc / 20.9 cu in. , produces power 10.4 kW / 14 hp @ 3500 rpm. BMW R 35 wet weight is 155 kg / 351 lbs. BMW R 35 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | R 35 |
| Years: | 1937-40 |
| Engine: | Four stroke, single cylinder vertical, OHV |
| Capacity: | 342 cc / 20.9 cu in. |
| Bore x Stroke: | 72 x 84 mm |
| Compression Ratio: | 6.0:1 |
| Cooling System: | Air cooled |
| Induction: | 1 x SUM type C K 9/22 |
| Ignition: | Bosch magneto ignition |
| Starting: | Kick |
| Clutch: | Single plate, dry |
| Max Power: | 10.4 kW / 14 hp @ 3500 rpm |
| Transmission: | 4 Speed |
| Final Drive: | Shaft |
| Gear Ratio: | 1st 3.4 / 2nd 2.18 / 3rd 1.35 / 4th 1.00:1 |
| Frame: | Pressed steel twin loop frame |
| Front Suspension: | Telescopic fork |
| Rear Suspension: | Rigid, spring loaded saddle |
| Front Brakes: | ∅180mm Drum |
| Rear Brakes: | ∅180mm Drum |
| Front Tyre: | 3.0 x 19" |
| Rear Tyre: | 3.5 x 19" |
| Wet-Weight: | 155 kg / 351 lbs |
| Fuel Capacity: | 12 liters / 3.1 US gal |
