Technical specifications
|
| Model: |

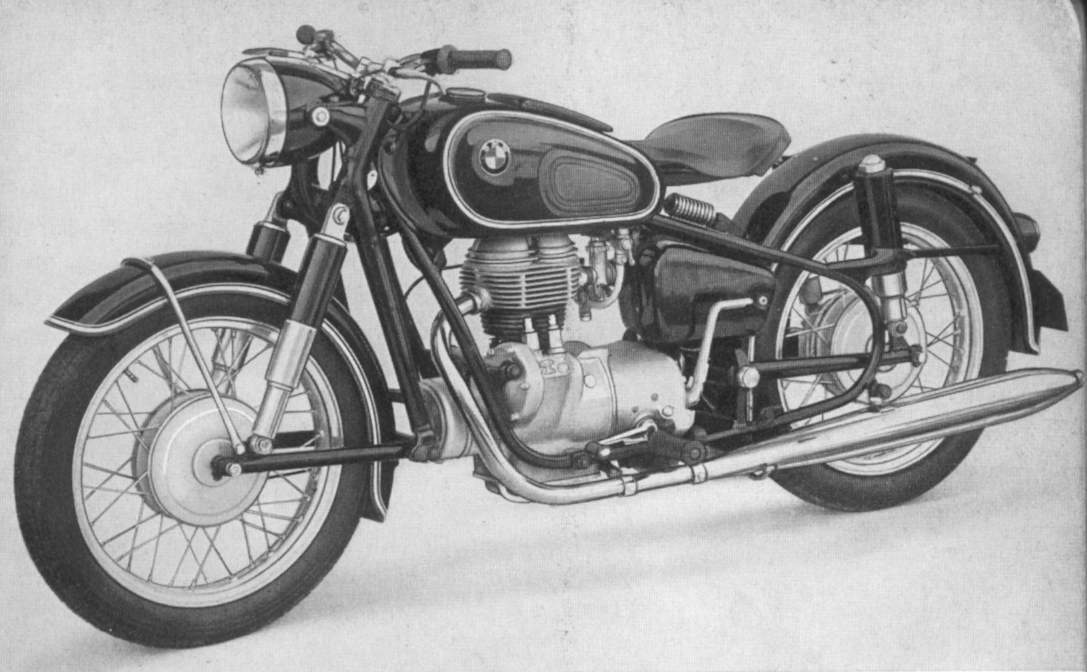

R 26 |
| Years: |
1956-60 |
|
Engine:
|
Four stroke, single cylinder, pushrod operated, OHV, 2 valves per cylinder.
|
|
Capacity:
|
247 cc / 15.1 cu in.
|
|
Bore x Stroke:
|
68 x 68 mm
|
|
Compression Ratio:
|
7.5:1
|
|
Cooling System:
|
Air cooled
|
|
Induction:
|
1x Bing carburetor type 1/26/46
|
|
Ignition:
|
Battery ignition
|
|
Starting:
|
Kick
|
|
Clutch:
|
Single plate, dry
|
|
Max Power:
|
11.2 kW / 15 hp @ 6400 rpm
|
|
Transmission:
|
4 Speed
|
|
Final Drive:
|
Shaft
|
|
Gear Ratio:
|
1st 5.33 / 2nd 3.02 / 3rd 2.04 / 4th 1.54:1
|
|
Frame:
|
Steel twin loop frame, welded
|
|
Front Suspension:
|
Telescopic fork
|
|
Rear Suspension:
|
Long swing arm with suspension units and oil pressure dampers
|
|
Front Brakes:
|
∅160mm Drum
|
|
Rear Brakes:
|
∅160mm Drum
|
|
Front Tyre:
|
3.25 x 18"
|
|
Rear Tyre:
|
3.25 x 18"
|
|
Wet-Weight:
|
158 kg / 348 lb
|
|
Fuel Capacity:
|
15 liters / US 3.9 gal
|
