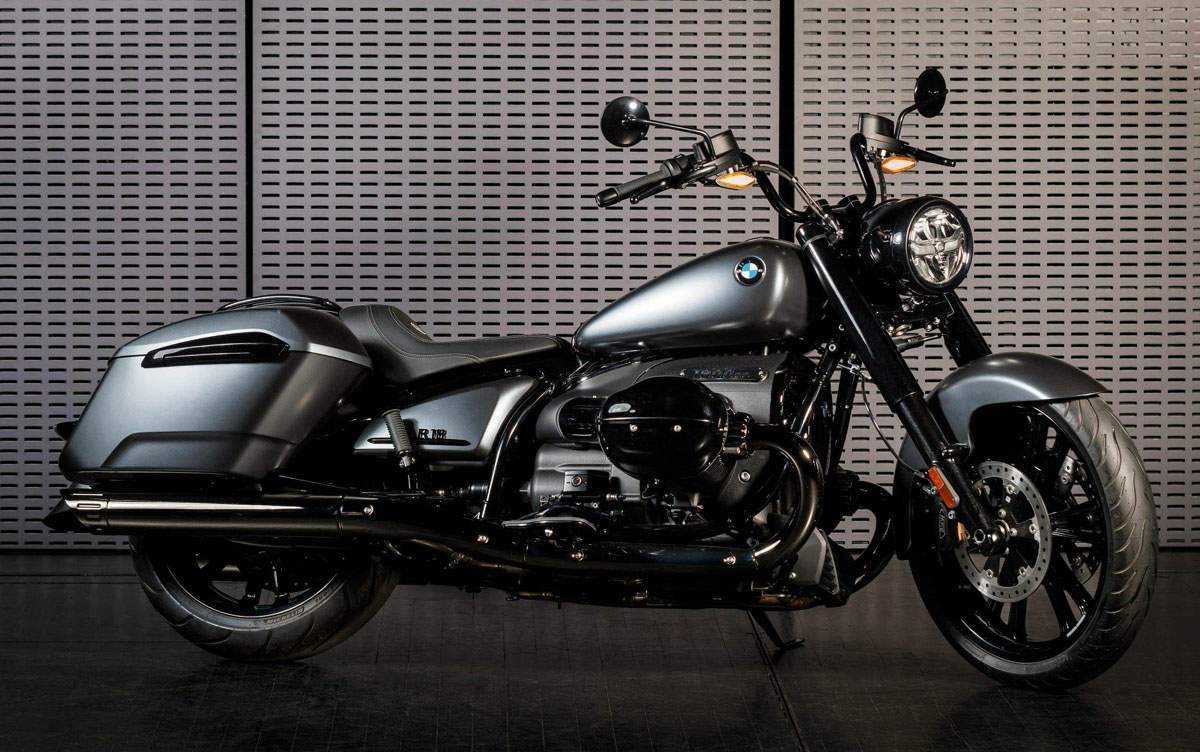

BMW R 18 Roctane (2023) technical specifications

BMW R 18 Roctane is produced in 2023. Engine is Four stroke, two cylinder horizontally opposed Boxer, Pushrod-actuated OHV with two camshafts, 4 valves per cylinder, displacement 1802 cc / 110 cu-in , produces power 67 kW / 91 hp @ 4750 rpm and 158 Nm / 116 lb-ft @ 3000 rpm. BMW R 18 Roctane wet weight is 374 kg / 824.5 lbs. BMW R 18 Roctane has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	R 18 Roctane
Years:	2023
Production:	1923 units
Engine:	Four stroke, two cylinder horizontally opposed Boxer, Pushrod-actuated OHV with two camshafts, 4 valves per cylinder
Intake x Outlet:	41.2 x 35.0 mm
Capacity:	1802 cc / 110 cu-in
Bore x Stroke:	107.1 X 100 mm
Compression Ratio:	9.6:1
Cooling System:	Air/water cooled
Fuel:	Premium unleaded (95-98 RON)
Induction:	Fuel injection, 48 mm Throttle valves
Engine control:	BMS-O
Emission:	Closed-loop 3-way catalytic converter, EU5 exhaust standard
Lubrication:	Wet sump
Alternator:	600W
Battery:	12/26 V/Ah maintenance-free
Headlight:	LED low beam with projection module LED high beam with projection module
Starting:	Electric, 1.5 kW
Max Power:	67 kW / 91 hp @ 4750 rpm
Max Torque:	158 Nm / 116 lb-ft @ 3000 rpm
Clutch:	Hydraulically activated single-disc dry clutch
Transmission:	Constant-mesh 6-speed
Final Drive:	Shaft, Final Drive 3.091
Primary Ratio:	1.16
Gear Ratios:	1st 2,438 / 2nd 1,696 / 3rd 1,296 / 4th 1,065 / 5th 0,903 / 6th 0,784
Frame:	Construction type Double-loop steel tube frame
Front Suspension:	49 mm Telescopic fork, Non-adjustable
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Cantilevered spring-preload adjustable shock
Rear Wheel Travel:	90 mm / 3.5 in
Front Brakes:	2 X 300mm discs
Rear Brakes:	Single 300mm disc
ABS System:	BMW Motorrad Integral ABS (part-integral)
Wheels:	Spoked
Front Wheel:	3.5 x 19
Rear Wheel:	5.0 x 16
Front Tyre:	120/70 B21
Rear Tyre:	180/55 B18
Rake:	32.7°
Trail:	150 mm / 5.9 in
Steering Head Angle:	57.3°
Dimensions:	Length: 2615 mm / 103 in Width: 953 mm / 37.5 in with mirrors
Seat Height:	720mm / 28.3 in
Wet Weight:	374 kg / 824.5 lbs
Fuel Capacity:	16 Litres / 4.2 US gal
