BMW R 18 Classic First Edition (2021) technical specifications

BMW R 18 Classic First Edition technical specifications

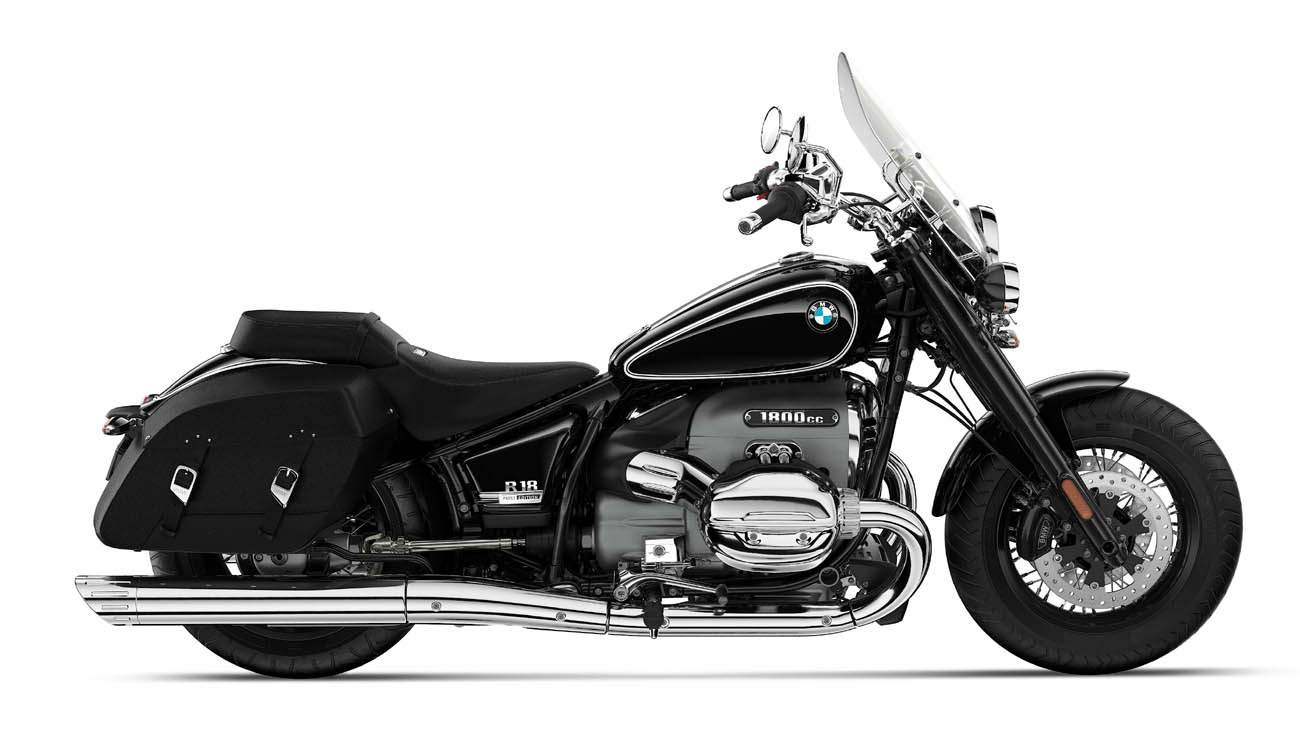

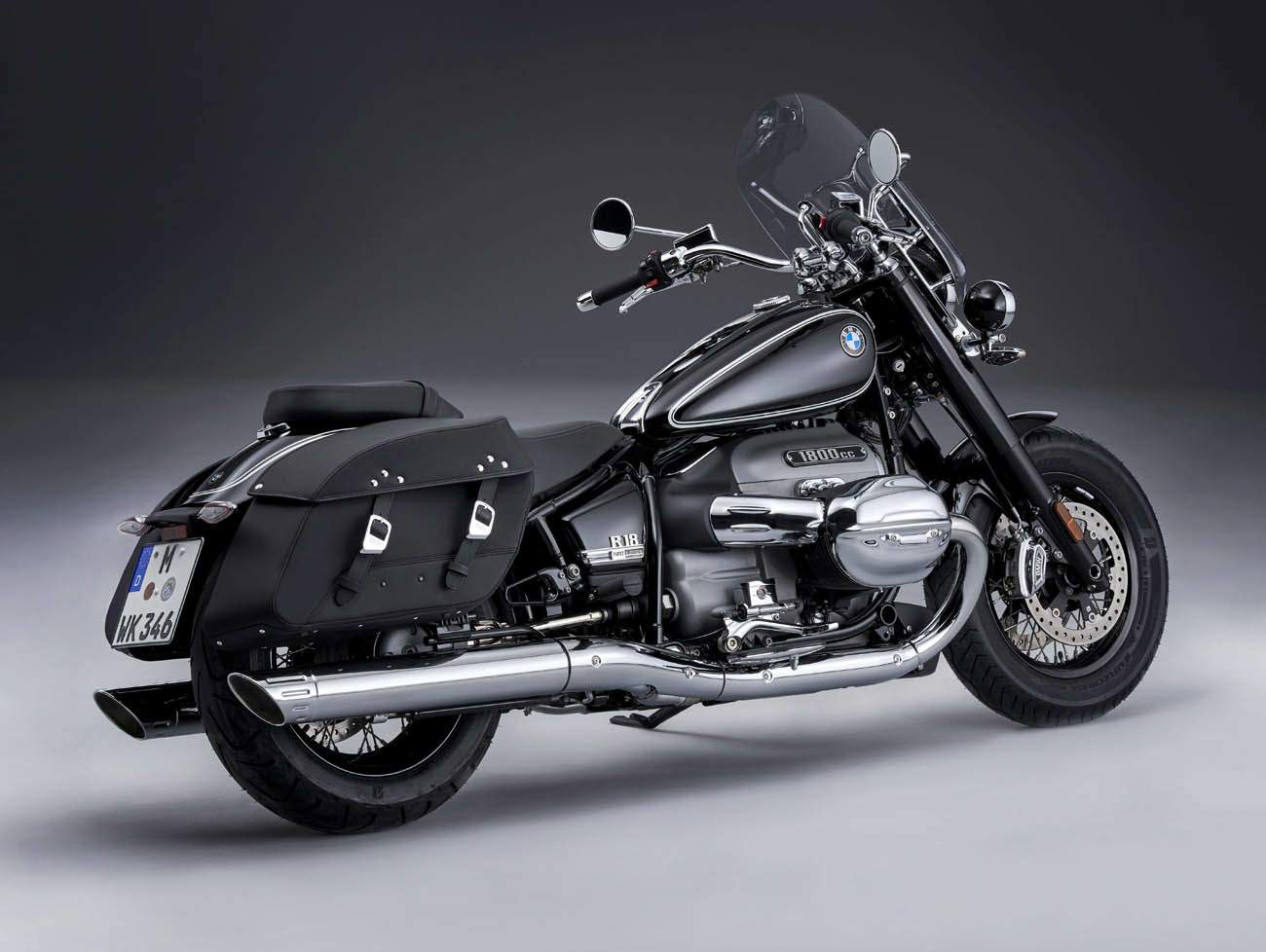

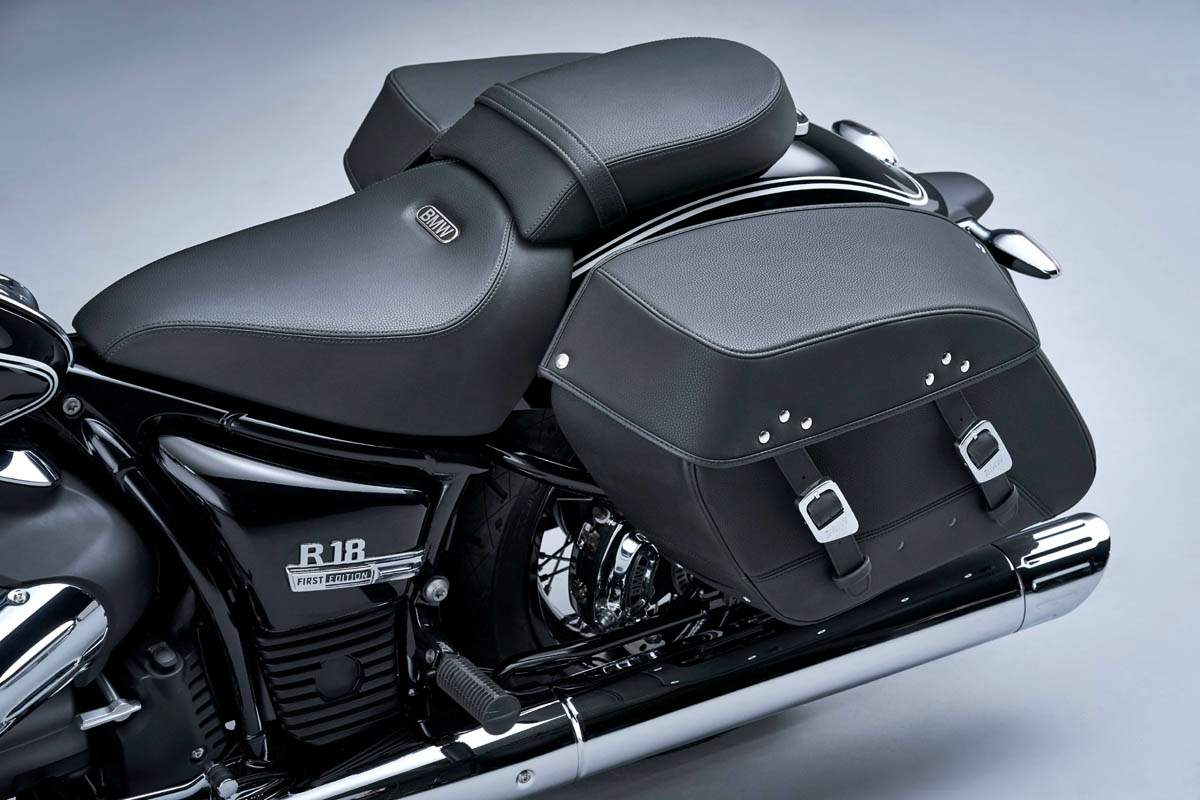

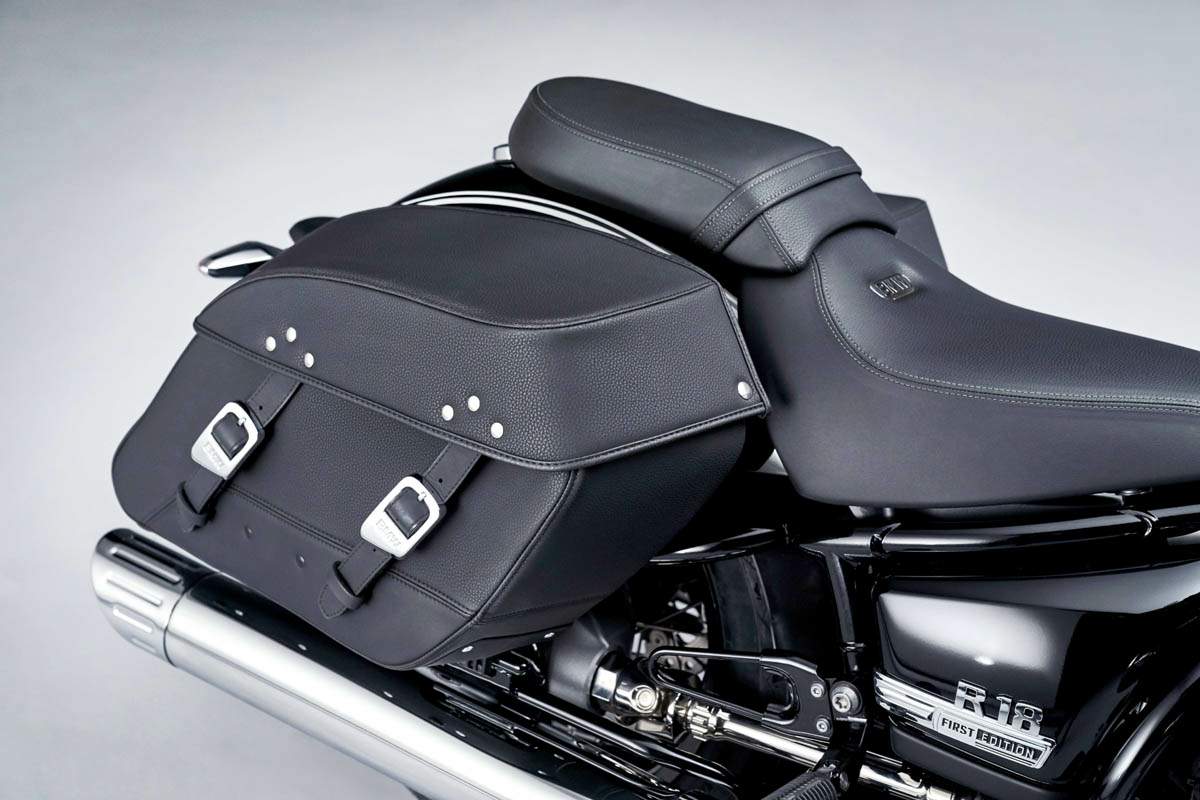

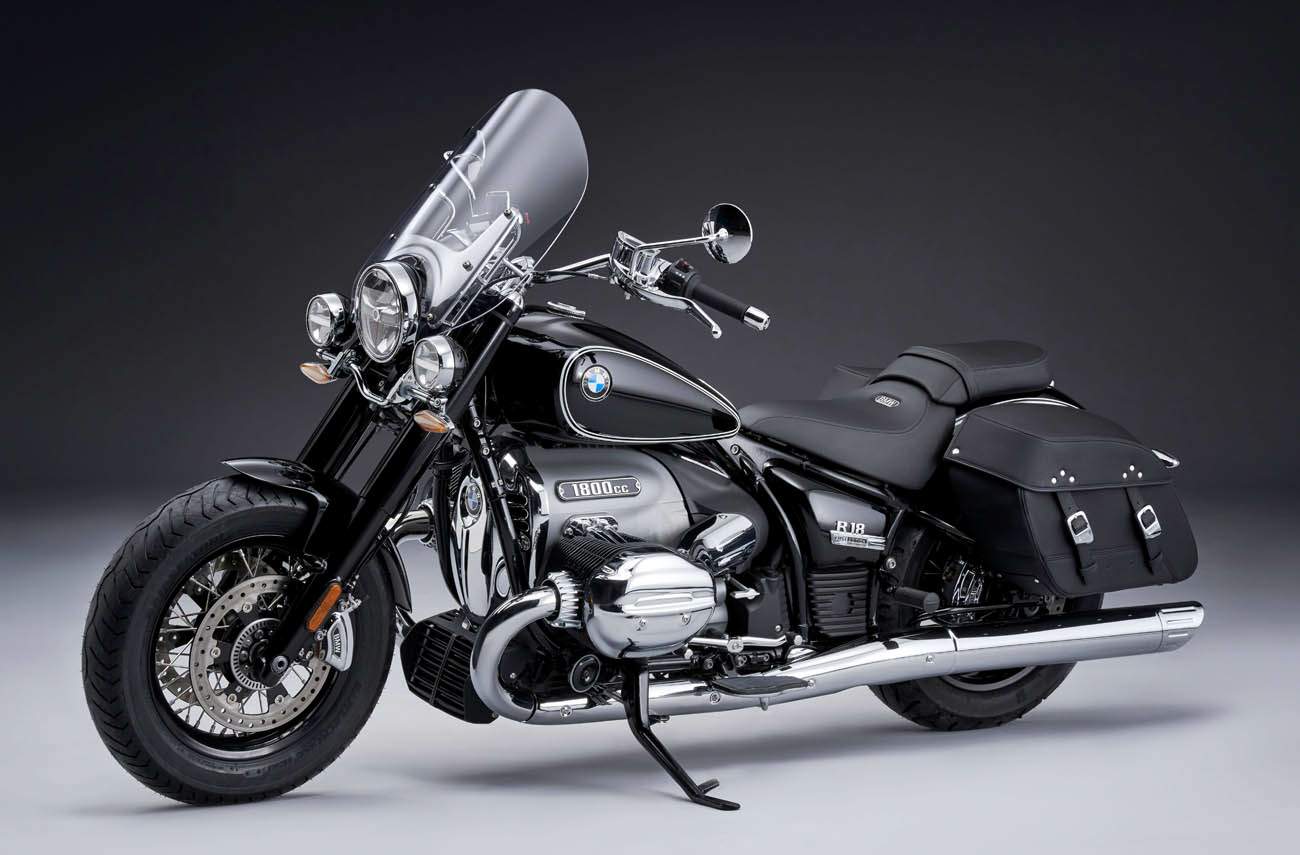

BMW R 18 Classic First Edition is produced in 2021. Engine is Four stroke, two cylinder horizontally opposed Boxer, Pushrod-actuated OHV with two camshafts, 4 valves per cylinder, displacement 1802 cc / 110 cu-in , produces power 67 kW / 91 hp @ 4750 rpm and 158 Nm / 116 lb-ft @ 3000 rpm. BMW R 18 Classic First Edition wet weight is 365 kg / 804.6 lbs. BMW R 18 Classic First Edition has 7 photos.

Technical specifications

+ Add to 'Compare list'
Model: R 18 Classic First Edition
Years: 2021

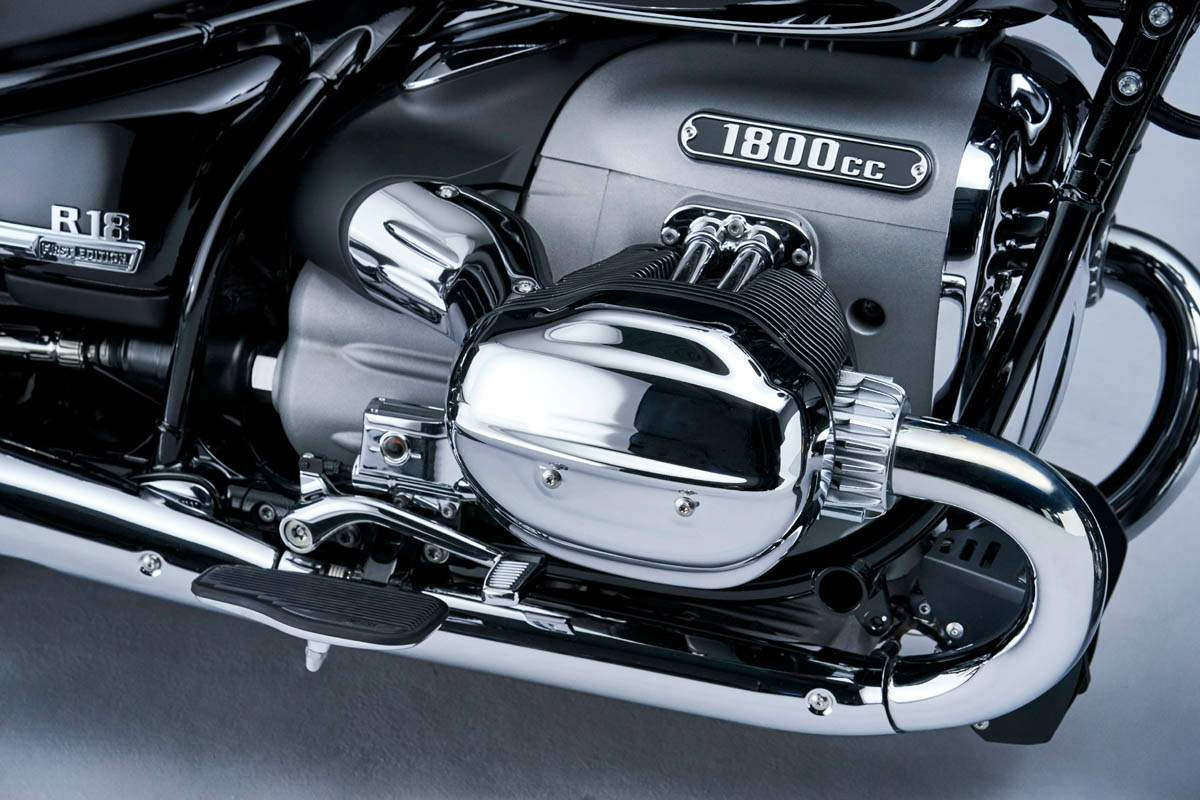

Engine: Four stroke, two cylinder horizontally opposed Boxer, Pushrod-actuated OHV with two camshafts, 4 valves per cylinder
Intake x Outlet: 41.2 x 35.0 mm
Capacity: 1802 cc / 110 cu-in
Bore x Stroke: 107.1 X 100 mm
Compression Ratio: 9.6:1
Cooling System: Air/water cooled
Fuel: Premium unleaded (95-98 RON)
Fuel System: Electronic intake pipe fuel injection, 48 mm Throttle valves
Engine control: BMS-K+ electronic engine management with overrun cut-off, twin-spark ignition: BMS-O with e-gas
Emission: Closed-loop 3-way catalytic converter, EU5 exhaust standard
Lubrication: Wet sump
Alternator: Permanent magnet generator 600 W (nominal capacity)
Battery: 12/26 V/Ah maintenance-free

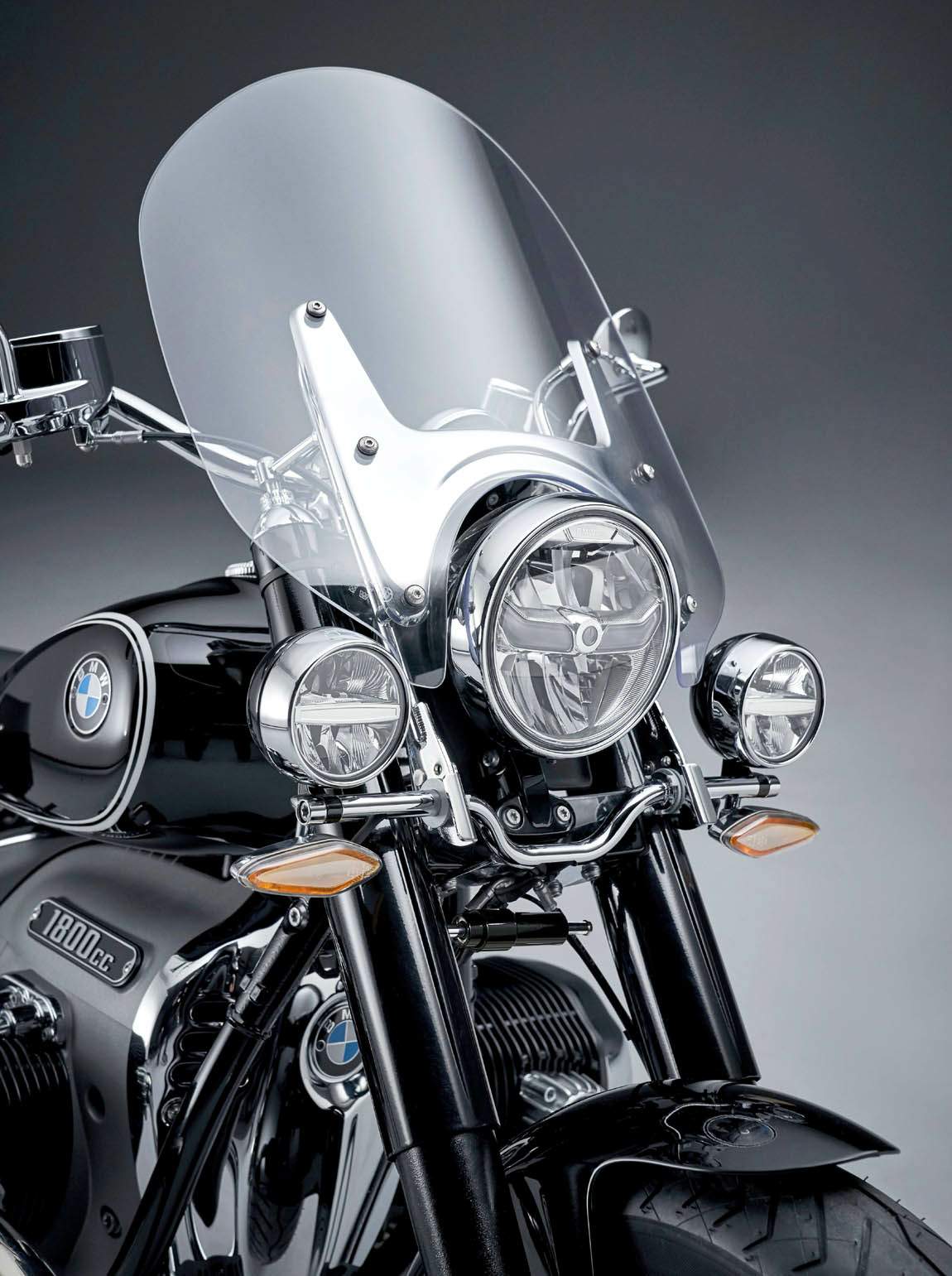

Headlight: LED low beam with projection module LED high beam with projection module
Starting: Electric, 1.5 kW
Max Power: 67 kW / 91 hp @ 4750 rpm
Max Torque: 158 Nm / 116 lb-ft @ 3000 rpm
Clutch: Hydraulically activated single-disc dry clutch
Transmission: 6-speed shifting claw transmission in separate transmission housing
Final Drive: Shaft, 3.091
Primary Ratio: 1.16
Gear Ratios: 1st 2,438 / 2nd 1,696 / 3rd 1,296 / 4th 1,065 / 5th 0,903 / 6th 0,784
Frame: Construction type double-loop steel tube frame
Front Suspension: 49 mm Telescopic fork, Non-adjustable
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Steel swinging fork with central shock strut
Rear Wheel Travel: 90 mm / 3.5 in
Front Brakes: 2x 300mm discs, 4-piston fixed caliper
Rear Brakes: Single 300mm disc, 4-piston fixed caliper
ABS System: BMW Motorrad Integral ABS (part-integral)
Wheels: Spoked
Front Rim: 3.0 x 16
Rear Rim: 5.0 x 16
Front Tyre: 130/90 B16
Rear Tyre: 180/65 B16
Rake: 32.7°
Trail: 150 mm / 5.9 in
Steering Head Angle: 57.3°
Dimensions: Length: 2440 mm / 36 in Width: 964 mm / 37.9 in with mirrors
Wheelbase: 1731 mm / 68.1 in
Seat Height: 710 mm / 27.9 in
Wet Weight: 365 kg / 804.6 lbs
Fuel Capacity: 16 Litres / 4.2 US gal
