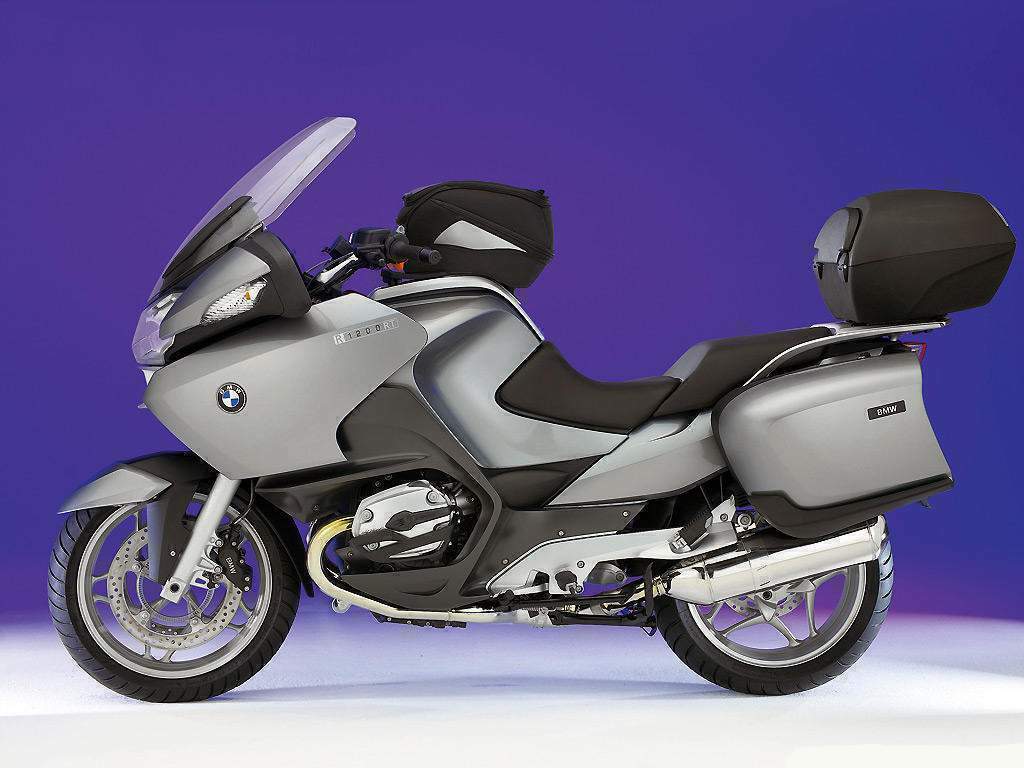

BMW R 1200RT (2006) technical specifications

BMW R 1200RT technical specifications

BMW R 1200RT is produced in 2006. Engine is Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder, displacement 1170 cc / 71.4 cu in , produces power 81kW / 110 hp @ 7500 rpm and 115 Nm / 11.7 kgf-m / 85 lb-ft @ 6000 rpm. BMW R 1200RT top speed is 210 km/h / 130.5 mph. BMW R 1200RT weighs 229 kg / 485.0 lbs. BMW R 1200RT has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: R 1200RT
Years: 2006
Engine: Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Capacity: 1170 cc / 71.4 cu in
Bore x Stroke: 101 x 73 mm
Cooling System: Air/Oil cooled
Compression Ratio: 12.0:1
Induction: BMW engine management, BMS-K
Ignition: Digital engine management
Starting: Electric
Battery: 12 V / 14 Ah, maintenance-free
Alternator: Three-phase alternator 720 W
Max Power: 81kW / 110 hp @ 7500 rpm
Max Torque: 115 Nm / 11.7 kgf-m / 85 lb-ft @ 6000 rpm
Clutch: Single dry plate clutch, hydraulically
Transmission: 6 Speed
Final Drive: System Enclosed driveshaft with two universal joints
Final Drive Ratio: 2.62:1
Gear Ratio: 1st 2.28 / 2nd 1.58 / 3rd 1.26 / 4th 1.03 / 5th 0.90 / 6th 0.81:1
Frame: Three-section frame consisting of front and rear section, load bearing engine-gearbox unit
Front Suspension: BMW Motorrad Telelever, stanchion diameter 35mm, central spring strut, rebound damping electronically adjustable with standard ESA
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Die-cast aluminium single-sided swinging arm with BMW Motorrad EVO-Paralever, spring preload hydraulically adjustable to continuously variable levels by means of electronically adjustable ESA, rebound damping with standard ESA
Rear Wheel Travel: 135 mm / 5.3 in
Front Brakes: 2 x 320mm Discs, 4 piston callipers
Rear Brakes: Single 265mm disc, 2 piston caliper
Wheels: Cast aluminium
Front Rim: 3.50 x 17
Rear Rim: 5.50 x 17
Front Tyre: 120/70 ZR17
Rear Tyre: 180/60 ZR17
Castor: 116 mm / 4.5 in
Steering Head Angle: 63.8°
Dimensions: Length 2230 mm / 79.9 in Width 905 mm / 35.6 in (incl. mirrors) Width 980 mm / 38.5 in (incl. panniers)
Wheelbase: 1485 mm / 58.4 in
Seat Height: 820 mm - 840 mm / 32.2 in - 33.0 in 780 mm - 800 mm / 30.7 - 31.4 in (special equipment low seat bench)
Ground Clearance: 155 mm / 6.1 in
Dry Weight: 229 kg / 485.0 lbs
Wet Weight: 259 kg / 570.9 lbs
Fuel Capacity: 27 Liters / 7.1 US gal
Reserve: 4 Litres / 1.0 US gal
Consumption Average: 5.3 L/100 km / 19.0 km/l / 44.7 US mpg
Standing 0 - 100km: 3.7 sec
Standing ¼ Mile: 12.2 sec
Acceleration 60-140 km/h: 9.8 sec
Top Speed: 210 km/h / 130.5 mph
