BMW R 1200GS Adventure Heroes Legend Edition (2007) technical specifications

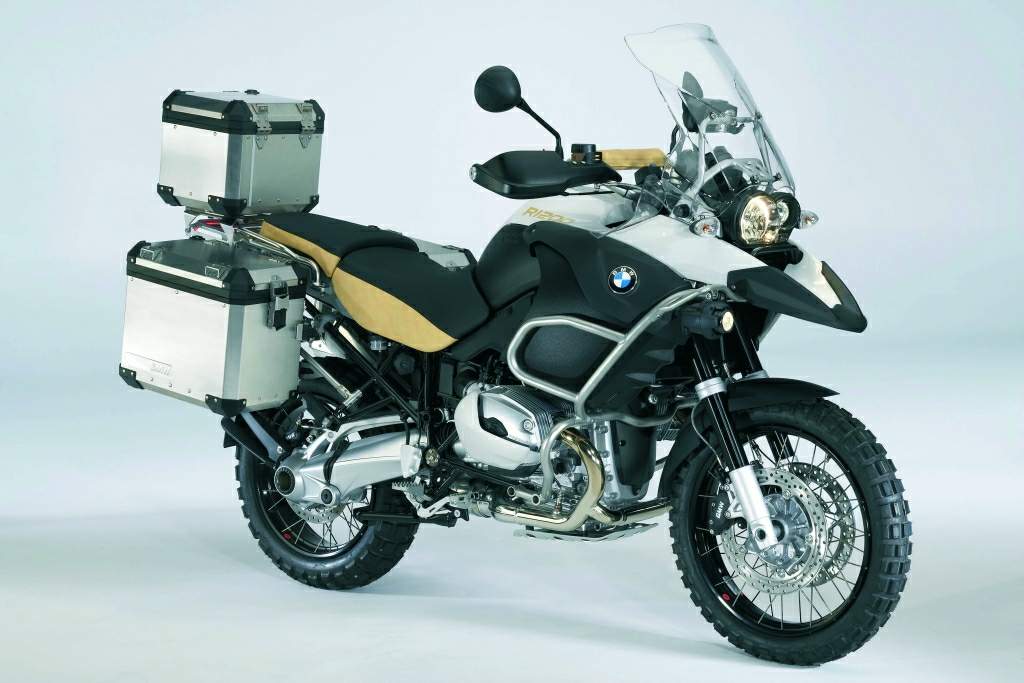

BMW R 1200GS Adventure Heroes Legend Edition technical specifications

BMW R 1200GS Adventure Heroes Legend Edition is produced in 2007. Engine is Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder, displacement 1170 cc / 71.4 in. , produces power 73 kW / 98 hp @ 7000 rpm and 115 Nm / 11.7 kgf-m / 84.8 ft-lbs @ 5500 rpm. BMW R 1200GS Adventure Heroes Legend Edition top speed is 193 km/h / 120 mph. BMW R 1200GS Adventure Heroes Legend Edition weighs 223 kg / 492 lbs. BMW R 1200GS Adventure Heroes Legend Edition has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: R 1200GS Adventure Heroes Legend Edition
Years: 2007
Engine: Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Capacity: 1170 cc / 71.4 in.
Bore x Stroke: 101 x 73 mm
Compression Ratio: 11.0:1
Cooling System: Air/oil cooled
Induction: Electronic intake pipe injection/digital engine management: BMS-K with overrun fuel cut off, dual ignition
Ignition: BMS-K
Starting: Electric
Alternator: Alternator three-phase alternator 720 W
Battery: Battery 12 V / 14 Ah, maintenance-free
Clutch: Single plate dry clutch, ∅180 mm, hydraulically operated
Max Power: 73 kW / 98 hp @ 7000 rpm
Max Torque: 115 Nm / 11.7 kgf-m / 84.8 ft-lbs @ 5500 rpm
Transmission: 6 Speed
Final Drive: Shaft
Gear Ratios: 1st 1.583 / 2nd 1.259 / 3rd 1.033 / 4th 0.903 / 5th 0.903 / 6th 0.805:1
Frame: Tubular space frame, engine load-bearing
Front Suspension: Telelever, stanchion ∅41mm, central spring strut, spring preload 9 times mechanically adjustable.
Front Wheel Travel: 210 mm / 8.3 in
Rear Suspension: Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever, WAD strut (travel-related damping), spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable.
Rear Wheel Travel: 220 mm / 8.7 in
Front Brakes: 2 x 305mm discs, 4 piston caliper
Rear Brakes: Single 265 mm disc, 2 piston caliper
Front Rim: 2.50 x 19
Rear Rim: 4.00 x 17
Front Tyre: 110/80 ZR19
Rear Tyre: 150/70 ZR17
Castor: 101 mm / 4.0 in
Dimensions: Length 2210 mm / 87.0 in Width 915 mm / 36.0 in (incl. mirrors) Height 1450 mm / 57.1 in (excl. mirrors)
Wheelbase: 1507 mm / 59.3 in
Seat Height: 890 - 910 mm / 35.0 - 35.8 in
Dry Weight: 223 kg / 492 lbs
Fuel Capacity: 33 Litres / 8.7 US gal
Tank Reserve: 4L / 1.1 US gal
Consumption Average: 6.3 L/100 km / 15.7 km/l / 36.9 US mpg
Standing ¼ Mile: 12.9 sec / 170.7 km/h / 106 mph
Standing 0 - 1000m: 24.7 sec / 190.5 km/h / 1118 mph
Top Speed: 193 km/h / 120 mph
