BMW R 1100RS (1997-98) technical specifications

BMW R 1100RS technical specifications

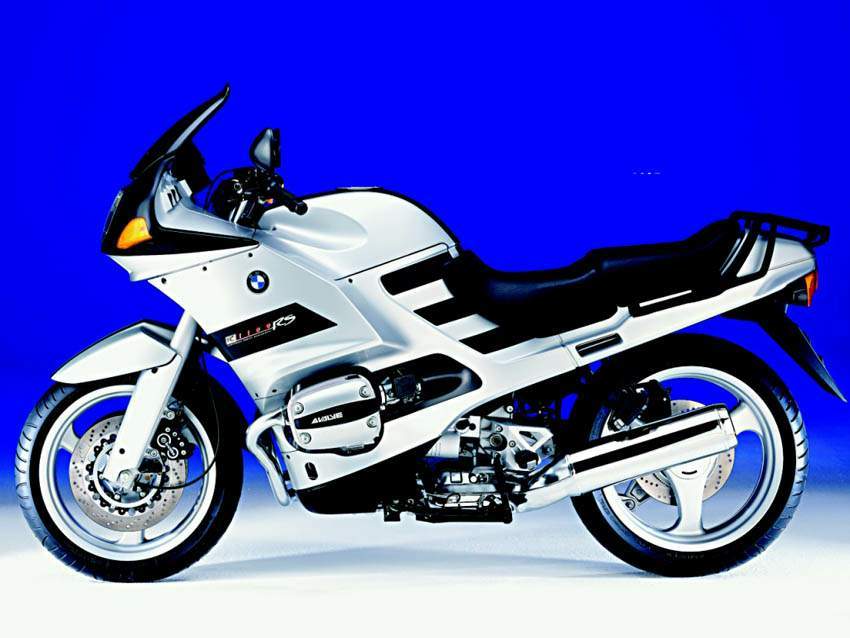

BMW R 1100RS is produced in 1997-98. Engine is Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder, displacement 1085 cc / 66.2 cu in , produces power 67.1 kW / 90 hp @ 7250 rpm and 95 Nm / 9.7 kgf-m / 69 lb-ft.@ 5500 rpm. BMW R 1100RS top speed is 218.7 km/h / 135.9 mph. BMW R 1100RS weighs 239 kg / 526 lbs. BMW R 1100RS has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: R 1100RS
Years: 1997-98
Engine: Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Capacity: 1085 cc / 66.2 cu in
Bore x Stroke: 99 x 70.5 mm
Cooling System: Air/Oil cooled
Compression Ratio: 10.7:1
Lubrication: Wet sump
Induction: Fuel injection
Ignition: Electronic ignition MA 2.2 Bosch Motronic
Alternator: 12 V 700 W
Spark Plug: Bosch, FR6 DDC
Starting: Electric
Max Power: 67.1 kW / 90 hp @ 7250 rpm
Max Power Rear Tyre: 60.4 kW / 81 hp @ 6900 rpm
Max Torque: 95 Nm / 9.7 kgf-m / 69 lb-ft.@ 5500 rpm
Clutch: Dry, single plate, cable operated
Transmission: 5 Speed
Final Drive: Shaft
Gear Ratio: 1st 4.16 / 2nd 2.91 / 3rd 2.13 / 4th 1.74 / 5th 1.45:1
Rear Wheel Ratio: 1:2.81
Frame: Steel, backbone frame
Front Suspension: Telelever with central spring strut & linear-rate coil spring. Twin-tube gas-filled shock
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Paralever swingarm & shaft drive, single-tube gas-filled shock, variable rebound setting
Rear Wheel Travel: 125 mm / 4.9 in
Front Brakes: 2 x ∅305mm discs, 4 piston calipers
Rear Brakes: Single ∅276mm disc, 2 piston caliper
Front Tyre: 120/70-17
Rear Tyre: 160/60-18
Dimensions: Length 2175 mm / 85.6 in Width 920 mm / 36.2 in Height 1286 mm / 50.6 in
Wheelbase: 1485 mm / 58.5 in
Seat Height: 780 mm / 30.7 in
Ground Clearance: 153 mm / 6.2 in
Dry Weight: 239 kg / 526 lbs
Wet Weight: 268 kg / 590.8 lbs
Fuel Capacity: 22 Litres / US 5.8 gal
Consumption Average: 6.0 L/100 km / 16.6 km/l / 39.0 US mpg
Braking 60 km/h- 0: 13.5 m / 44.3 ft
Braking 100 km/h - 0: 40.0 m / 131 ft
Standing ¼ Mile: 12.1 sec / 177.5 km/h / 110.3 mph
Top Speed: 218.7 km/h / 135.9 mph
