BMW R 100RT Classic (1995) technical specifications

BMW R 100RT Classic technical specifications

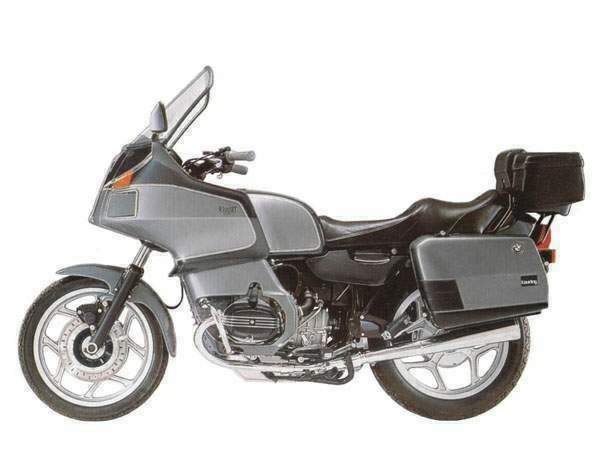

BMW R 100RT Classic is produced in 1995. Engine is Four stroke, two cylinder horizontally opposed Boxer, 2 valves per cylinder, displacement 980 cc 59.8 cu in , produces power 43.7 kW / 60 hp @ 7000 rpm and 74 Nm / 7.5 kgf-m / 54.6 ft-lb @ 6000 rpm. BMW R 100RT Classic top speed is 203 km/h / 126 mph. BMW R 100RT Classic wet weight is 238 Kg / 525 lbs. BMW R 100RT Classic has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: R 100RT Classic
Years: 1995
Engine: Four stroke, two cylinder horizontally opposed Boxer, 2 valves per cylinder
Capacity: 980 cc 59.8 cu in
Bore x Stroke: 94 x 70.6 mm
Cooling System: Air cooled
Compression Ratio: 8.45:1
Lubrication: Wet sump
Induction: 2 x Constant depression carburettors, Bing 94/40/105 - 94/40/106
Ignition: Battery ignition
Alternator: Bosch 12V/240 W
Battery: Bosch 0.6 hp (from 1978: 0.7 Kw)
Starting: Electric
Max Power: 43.7 kW / 60 hp @ 7000 rpm
Max Torque: 74 Nm / 7.5 kgf-m / 54.6 ft-lb @ 6000 rpm
Clutch: Dry single plate, with diaphragm spring
Transmission: 5 Speed
Gear Ratio: 1st 4.4 / 2nd 2.86 / 3rd 2.07 / 4th 1.67 / 5th 1.50 : 1
Gear Ratio Sport Version: 1st 3.38 / 2nd 2.43 / 3rd 1.93 / 4th 1.67 / 5th 1.50
Rear Wheel Ratio: 1:2.91 or 1:3.00
Bevel / Crown wheel: 11 / 32 teeth or 10 / 32 teeth
Final Drive: Shaft
Frame: Double sown tubs, dual cradle
Front Suspension: Telescopic fork with hydraulic shock absorber.
Front Wheel Travel: 200 mm / 7.8 in
Rear Suspension: Monolever swinging arm
Rear Wheel Travel: 125 mm / 4.9 in
Front Brakes: 2 x ∅260mm discs, 2 piston calipers
Rear Brakes: Simplex ∅200 mm drum
Front Wheel: 1.85 B 19
Rear Wheel: 2.75 C 18
Front Tyre: 3.25 H-19
Rear Tyre: 4.00 H-18
Dimensions: Length 2110 mm / 87 in Width 746 mm / 29.37 in Height 1465 mm / 57.67 in
Wheelbase: 1465 mm / 57.67 in
Seat Height: 820 mm / 32.3 in
Ground Clearance: 165 mm / 6.49 in
Wet Weight: 238 Kg / 525 lbs
Fuel Capacity: 24 Litres / 6.3 US gal
Consumption Average: 5.1 L/100 km / 19.6 km/l / 46 US mpg
Standing ¼ Mile: 13.8 sec / 153 km/h / 95 mph
Top Speed: 203 km/h / 126 mph
