BMW R 100R Mystic (1993) technical specifications

BMW R 100R Mystic technical specifications

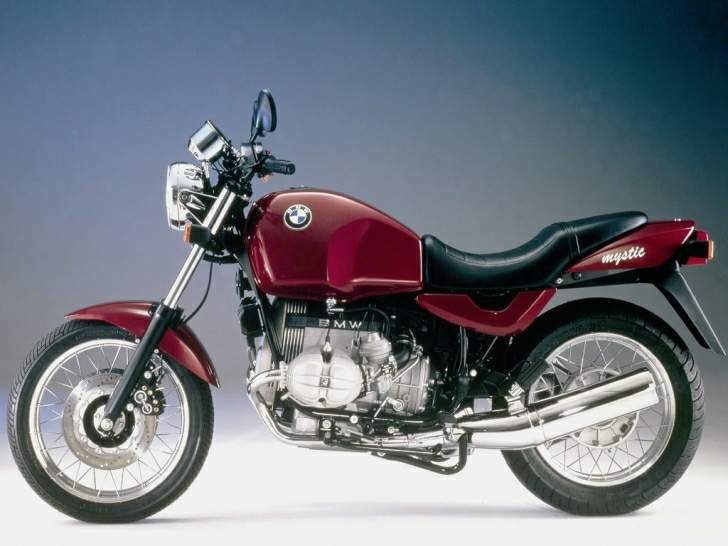

BMW R 100R Mystic is produced in 1993. Engine is Four stroke, two cylinder horizontally opposed Boxer, 2 valves per cylinder., displacement 980 cc / 59.8 cub in. , produces power 44 KW / 60 hp @ 6500 rpm and 76 Nm / 7.75 kgf-m / 56 ft lb @ 3750 rpm. BMW R 100R Mystic top speed is 175 km/h / 109 mph. BMW R 100R Mystic weighs 197 kg / 435 lbs. BMW R 100R Mystic has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: R 100R Mystic
Years: 1993
Engine: Four stroke, two cylinder horizontally opposed Boxer, 2 valves per cylinder.
Capacity: 980 cc / 59.8 cub in.
Bore x Stroke: 94 x 70.6 mm
Compression Ratio: 8.5:1
Cooling System: Air/oil cooled
Lubrication: Wet sump
Oil Capacity: 2.8 L / 3.0 US quarts
Induction: 2 Constant depression carburettors, Bing 94/40/123 - 94/40/124
Ignition: Contact free electronic ignition (Bosch)
Battery: 12V 25Ah
Alternator: Bosch 240 W
Spark Plugs: Bosch W 7 DC / Beru 14-7 DU
Starting: Electric
Max Power: 44 KW / 60 hp @ 6500 rpm
Max Torque: 76 Nm / 7.75 kgf-m / 56 ft lb @ 3750 rpm
Clutch: Dry single plate, with lever action diaphragm spring
Transmission: 5 Speed
Final Drive: Shaft
Gear Ratio: 1st 4.40 / 2nd 2.86 / 3rd 2.07 / 4th 1.67 / 5th 1.50:1
Frame: Double loop tubular frame with bolt on rear section
Wheelbase: 1494 mm / 58.8 in.
Seat Height: 800 mm / 31.5 in
Ground Clearance: 170 mm / 6.7 in.
Rake: 28.5°
Trail: 99 mm / 3.9 in.
Front Suspension: Telescopic fork with hydraulic shock absorber, Showa, ∅41 mm
Front Wheel Travel: 140 mm / 5.5 in.
Rear Suspension: Paralever swinging arm, single shock, Showa, adjustable for rebound damping
Rear Wheel Travel: 135 mm / 5.3 in.
Front Brakes: 2 x ∅285mm disc 4 piston calipers
Rear Brakes: Single ∅200mm disc
Front Tyre: 110 / 80 V18, Metzeler ME33 Lazer
Rear Tyre: 140 / 80 V 17, Metzeler ME55A Metronic
Dry Weight: 197 kg / 435 lbs
Wet Weight: 213 kg / 469 lbs
GVWR: 420 kg / 926 lbs
Load Capacity (full tank): 207 kg / 457 lbs
Fuel Capacity: 22 Litres / 5.7 US gal
Consumption Average: 4.9 L/100 km / 20.4 km/l / 48 US mpg
Braking 48 km/h / 30 mph - 0: 7.9 m / 26 ft.
Braking 97 km/h / 60 mph - 0: 38.7 m / 127 ft.
Standing ¼ Mile: 13.3 sec / 158.8 km/h / 98.68 mph
Acc: 0 - 48 km/h / 30 mph: 1.5 sec
Acc: 0 - 97 km/h / 60 mph: 4.6 sec
Acc: 0 - 145 km/h / 90 mph: 11.5 sec
Acc: 0 - 161 km/h / 100 mph: 17.1 sec
Top Gear Acc: 64 - 97 km/h / 40 - 60 mph: 4.1 sec
Top Gear Acc: 97 - 129 km/h / 60 - 80 mph: 4.8 sec
Top Speed: 175 km/h / 109 mph
