BMW K 1300 S 30th Anniversary Edition (2013) technical specifications

BMW K 1300 S 30th Anniversary Edition technical specifications

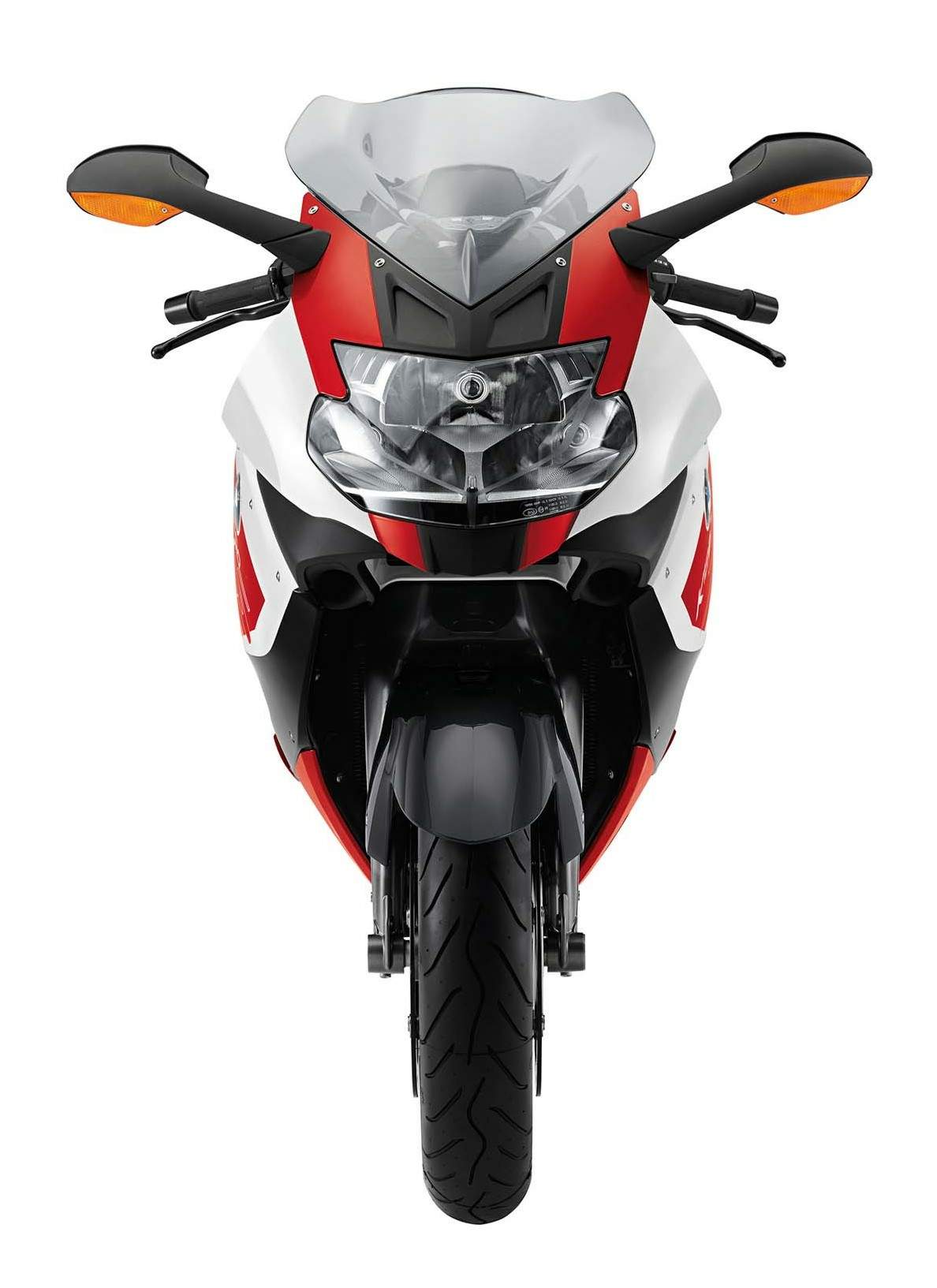

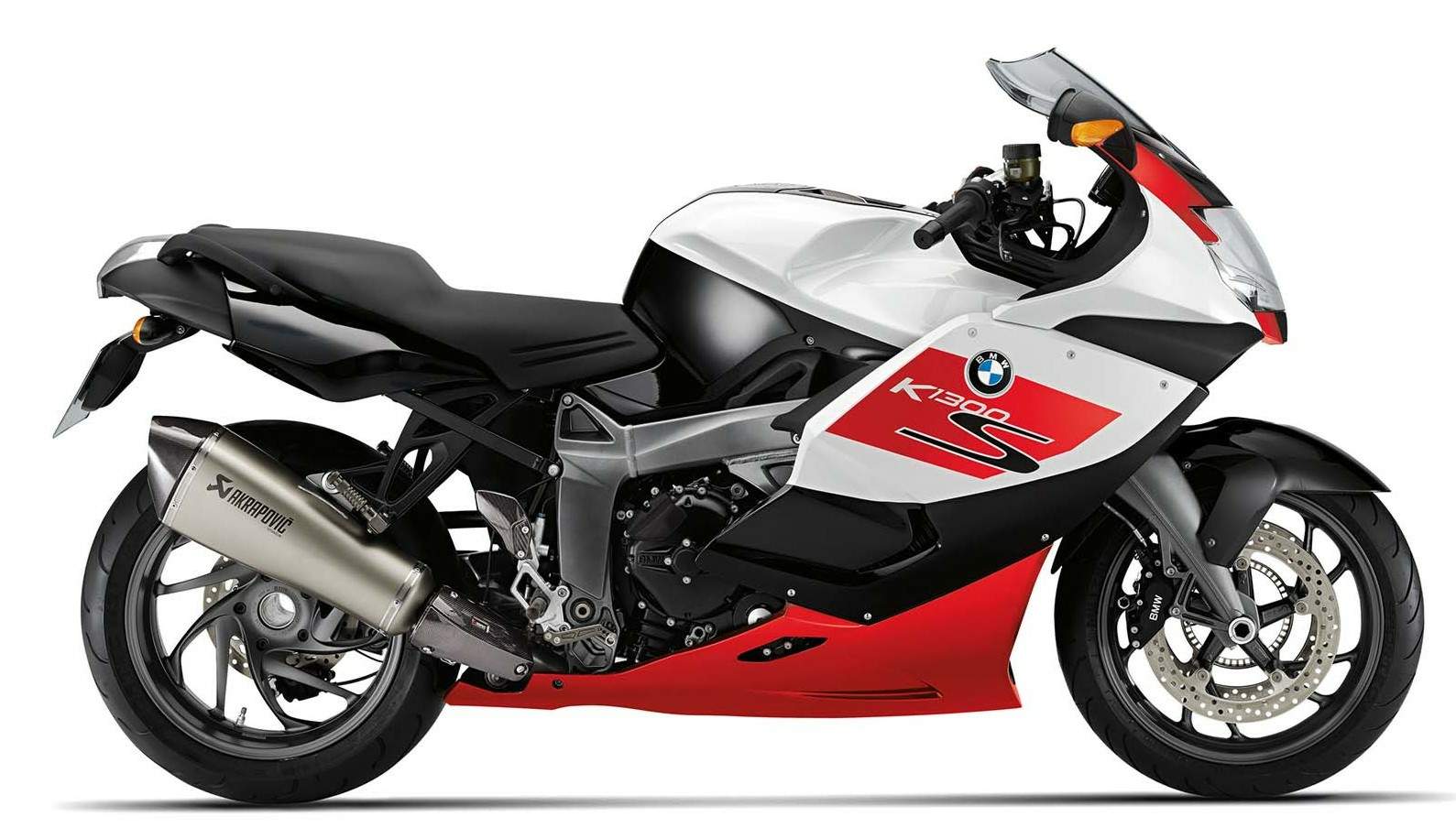

BMW K 1300 S 30th Anniversary Edition is produced in 2013. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 1298 cc / 79.2 cu in. , produces power 127 kW / 173 hp @ 9250 rpm and 140 Nm / 14.3 kgf-m / 103 lb-ft @ 8250 rpm. BMW K 1300 S 30th Anniversary Edition top speed is 276.6 km/h / 171.9 mph. BMW K 1300 S 30th Anniversary Edition weighs 228 kg / 503 lbs. BMW K 1300 S 30th Anniversary Edition has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: K 1300 S 30th Anniversary Edition
Years: 2013
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 1298 cc / 79.2 cu in.
Bore x Stroke: 80 x 64.3 mm / 3.15 x 2.53 in
Compression Ratio: 13.0:1
Cooling System: Liquid cooled
Induction: Electronic fuel injection, Digital Motor Electronics with integrated knock control (BMS-K)
Ignition: Digital CDI
Starting: Electric
Exhaust management: Fully controlled three-way catalyst
Lubrication: Dry sump
Alternator: Three-phase alternator, 580W
Battery: 12V / 14AH, maintenance free
Clutch: Multiple-plate clutch in oil bath, hydraulically operated
Max Power: 127 kW / 173 hp @ 9250 rpm
Max Torque: 140 Nm / 14.3 kgf-m / 103 lb-ft @ 8250 rpm
Transmission: 6 Speed
Final Drive: Shaft
Gear Ratio: 1st 2.398 / 2nd 1.871 / 3rd 1.525 / 4th 1.296 / 5th 1.143 / 6th 1.015:1
Frame: Bridge frame, aluminium, load-bearing engine
Steering Head Angle: 60.4º
Trail: 104.4 mm / 4.1 in
Front Suspension: BMW Motorrad Duolever; central spring strut, Paralever; central spring strut with lever system
Front Wheel Travel: 115 mm / 4.5 in
Rear Suspension: Cast aluminium single swing arm with BMW Motorrad, spring pre-tension with infinite hydraulic adjustment
Rear Wheel Travel: 135 mm / 5.3 in
Front Brakes: 2x 320mm discs, 4 piston calipers
Rear Brakes: Single 265mm disc, 2 piston caliper
Wheels: Cast aluminium
Front Rim: 3.50 x 17
Rear Rim: 6.00 x 17
Front Tyre: 120/70 ZR17
Rear Tyre: 190/55 ZR17
Dimensions: Length 2182 mm / 85.9 in Width 905 mm / 35.6 in (incl. morrors) Height 1221 mm / 48.0 in (excl. mirrors)
Wheelbase: 1585 mm / 62.4in
Seat Height: 820 mm/ 32.3 in - low seat 790 mm / 31.1 in
Dry Weight: 228 kg / 503 lbs
Wet Weight: 254 kg / 550 lbs
Fuel Capacity: 19 L / 5.0 US gal
Consumption Average: 5.7 L/100 km 17.5 km/l / 41.2 US mpg
Standing 0 - 100 km/h: 2.9 sec
Standing 0 - 140 km/h: 4.3 sec
Standing 0 - 200 km/h: 7.8 sec
Standing ¼ Mile: 11.0 sec
Acceleration 60 - 100 km/h: 3.3 sec
Acceleration 60 - 140 km/h: 6.5 sec
Acceleration 100 - 140 km/h: 3.2 sec
Acceleration 140 - 180 km/h: 3.4 sec
Top Speed: 276.6 km/h / 171.9 mph
