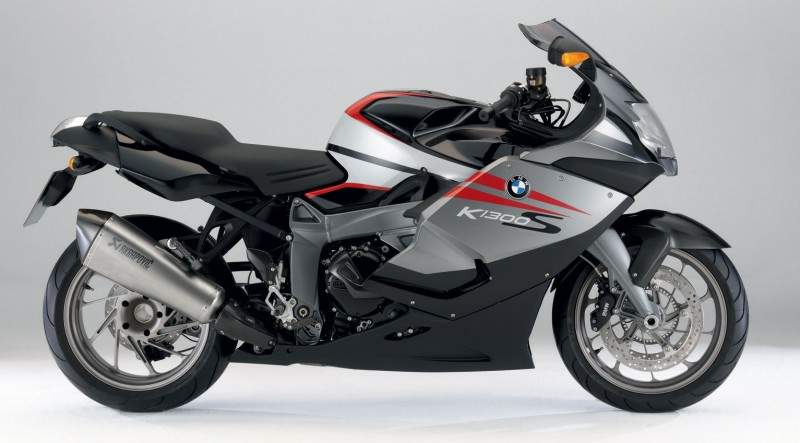

BMW K 1300 S (2009) technical specifications

BMW K 1300 S is produced in 2009. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 1298 cc / 79.2 cu in. , produces power 127 kW / 173 hp @ 9250 rpm and 140 Nm / 14.3 kgf-m / 103 lb-ft @ 8250 rpm. BMW K 1300 S top speed is 276.6 km/h / 171.9 mph. BMW K 1300 S weighs 228 kg / 503 lbs. BMW K 1300 S has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	K 1300 S
Years:	2009
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity:	1298 cc / 79.2 cu in.
Bore x Stroke:	80 x 64.3 mm / 3.15 x 2.53 in
Compression Ratio:	13.0:1
Cooling System:	Liquid cooled
Induction:	Electronic fuel injection, Digital Motor Electronics with integrated knock control (BMS-K)
Ignition:	Digital CDI
Starting:	Electric
Exhaust management:	Fully controlled three-way catalyst
Lubrication:	Dry sump
Alternator:	Three-phase alternator, 580W
Battery:	12V / 14AH, maintenance free
Clutch:	Multiple-plate clutch in oil bath, hydraulically operated
Max Power:	127 kW / 173 hp @ 9250 rpm
Max Torque:	140 Nm / 14.3 kgf-m / 103 lb-ft @ 8250 rpm
Transmission:	6 Speed
Final Drive:	Shaft
Gear Ratio:	1st 2.398 / 2nd 1.871 / 3rd 1.525 / 4th 1.296 / 5th 1.143 / 6th 1.015:1
Frame:	Bridge frame, aluminium, load-bearing engine
Steering Head Angle:	60.4º
Trail:	104.4 mm / 4.1 in
Front Suspension:	BMW Motorrad Duolever, central spring strut, Paralever; central spring strut with lever system
Front Wheel Travel:	115 mm / 4.5 in
Rear Suspension:	Cast aluminium single swing arm with BMW Motorrad, spring pre-tension with infinite hydraulic adjustment
Rear Wheel Travel:	135 mm / 5.3 in
Front Brakes:	2x 320mm discs, 4 piston calipers
Rear Brakes:	Single 265mm disc, 2 piston caliper
Wheels:	Cast aluminium
Front Rim:	3.50 x 17
Rear Rim:	6.00 x 17
Front Tyre:	120/70 ZR17
Rear Tyre:	190/55 ZR17
Dimensions:	Length 2182 mm / 85.9 in Width 905 mm / 35.6 in (incl. mirrors) Height 1221 mm / 48.0 in (excl. mirrors)
Wheelbase:	1585 mm / 62.4 in
Seat Height:	820 mm/ 32.3 in - low seat 790 mm / 31.1 in
Dry Weight:	228 kg / 503 lbs
Wet Weight:	254 kg / 550 lbs
Fuel Capacity:	19 Litres / 5.0 US gal
Consumption Average:	5.7 Litres/100 km 17.5 km/l / 41.2 US mpg
Standing 0 - 100 km/h:	2.9 sec
Standing 0 - 140 km/h:	4.3 sec
Standing 0 - 200 km/h:	7.8 sec
Standing ¼ Mile:	11.0 sec
Acceleration 60 - 100 km/h:	3.3 sec
Acceleration 60 - 140 km/h:	6.5 sec
Acceleration 100 - 140 km/h:	3.2 sec
Acceleration 140 - 180 km/h:	3.4 sec
Top Speed:	276.6 km/h / 171.9 mph
