BMW G 310R (2020) technical specifications

BMW G 310R technical specifications

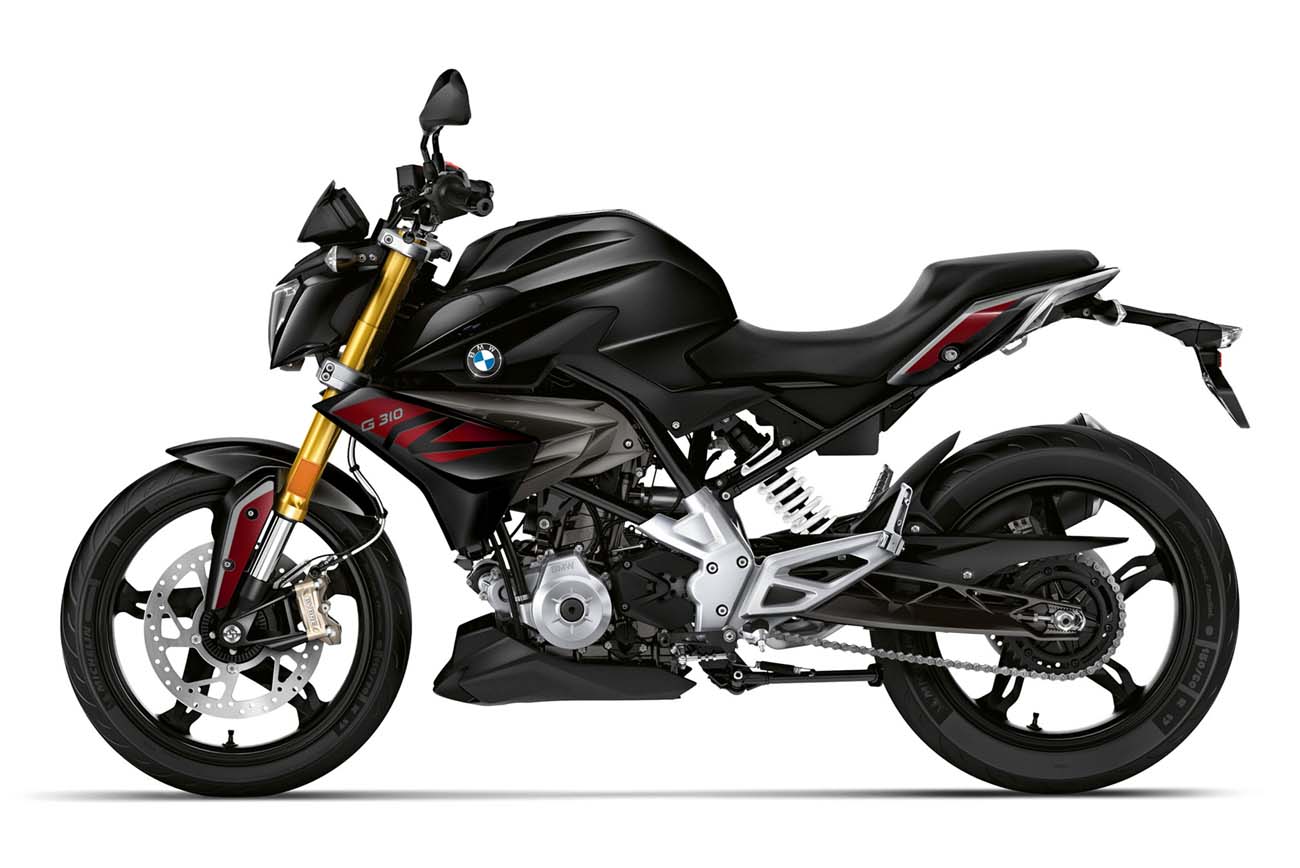

BMW G 310R is produced in 2020. Engine is Single cylinder, DOHC, 4 valves, displacement 313 cc / 19.1 cu in , produces power 25 kW / 34 hp @ 9500 rpm and 28 Nm / 20.7 ft-lb @ 7500 rpm. BMW G 310R wet weight is 158.5 kg / 349 lbs. BMW G 310R has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: G 310R
Years: 2020
Engine: Single cylinder, DOHC, 4 valves
Capacity: 313 cc / 19.1 cu in
Bore x Stroke: 80 x 62 mm
Compression Ratio: 10.6:1
Cooling: Liquid Cooled
Intake Valve: 33.5 mm
Outlet Valve: 27.2 mm
Induction: BMS-E2
Alternator: 330W
Battery: 12V, 8 Ah
Starting: Electric
Clutch: Wet multi-plate
Max Power: 25 kW / 34 hp @ 9500 rpm
Max Torque: 28 Nm / 20.7 ft-lb @ 7500 rpm
Transmission: 6-Speed, constant-mesh
Final Drive: Chain, O-ring
Primary Ratio: 3.083:1
Gear Ratios: 1st 3.000 / 2 nd 2.063 / 3rd 1.588 / 4th 10286 / 5th 1.095 / 6th 0.955:1
Frame: Tubular steel frame in grid structure with bolt-on rear frame
Front Suspension: 41mm Telescopic fork
Front Wheel Travel: 140 mm / 5.5 in
Rear Suspension: Aluminium swinging arm in conjunction with a directly mounted spring strut
Rear Wheel Travel: 131 mm / 5.5 in
Front Brakes: Single 300mm disc
Rear Brakes: Single 240mm disc
ABS: Standard
Wheels: 5-Spoke, light alloy die-cast
Front Rim: 3.0 x 17
Rear Rim: 4.0 x 17
Front Tyre: 110/70 R17
Rear Tyre: 150/60 R17
Castor: 102.3 mm / 4.02 in
Steering Head Angle: 64.9°
Dimensions: Length: 1988 mm / 78.3 in Width: 896 mm / 35.3 in
Wheelbase: 1374 mm / 54.1 in
Seat Height: 785 mm / 30.9 in
Wet Weight: 158.5 kg / 349 lbs
Fuel Capacity: 11 Litres / 2.9 US gal
