BMW F 900GS (2024) technical specifications

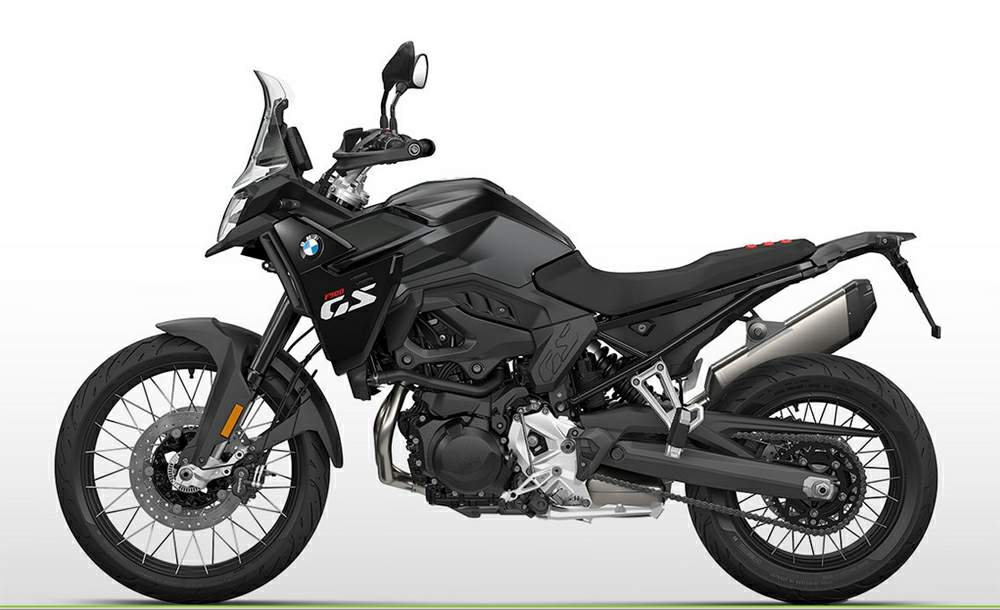

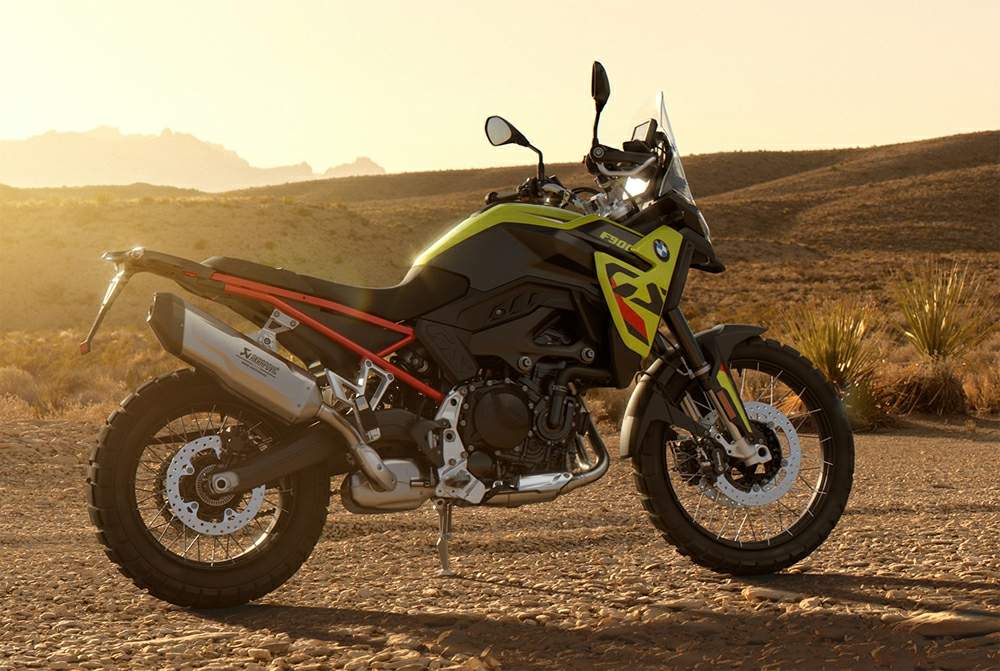

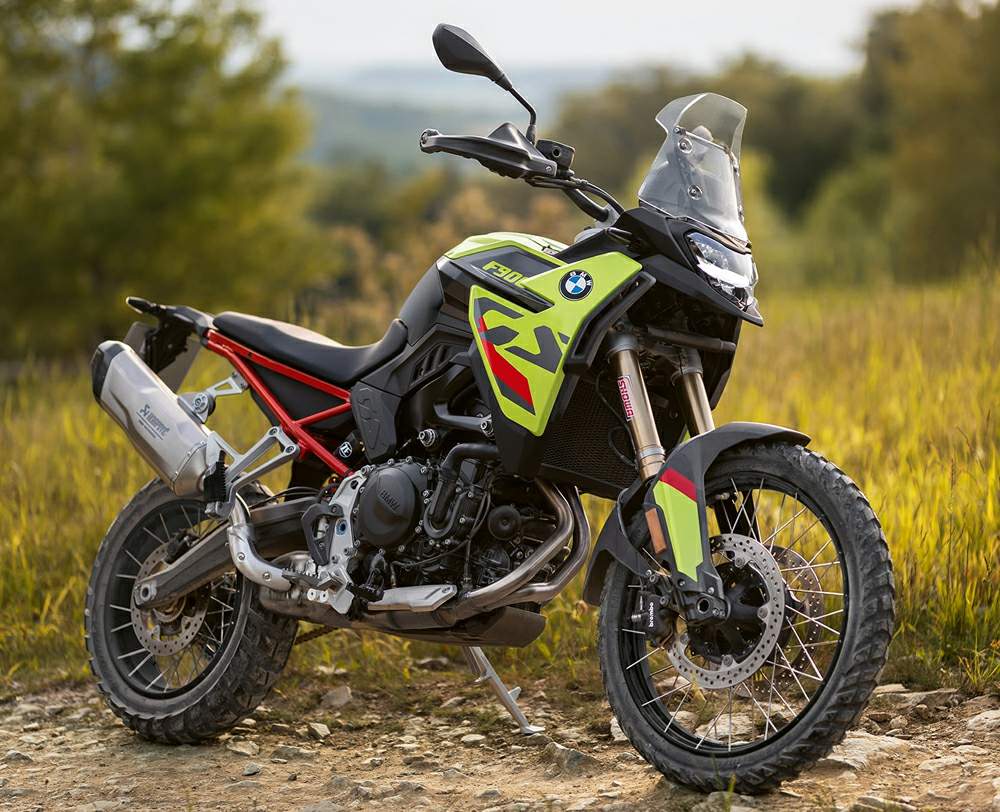

BMW F 900GS is produced in 2024. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 895 cc / 54.6 cu-in , produces power 77 kW / 103 hp @ 8500 rpm and 93 Nm / 68.6 lb-ft @ 6750 rpm. BMW F 900GS wet weight is 219 kg / 482.8 lbs. BMW F 900GS has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	F 900GS
Years:	2024
Engine:	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Capacity:	895 cc / 54.6 cu-in
Bore x Stroke:	86 x 77 mm
Compression Ratio:	13.1:1
Cooling System:	Liquid cooled
Emission:	Closed-loop 3-way catalytic converter, emission standard EU-5
Induction:	Electronic injection
Ignition:	Electronic
Alternator:	permanent magnetic alternator 416 W (nominal power)
Battery:	12 V / 9 Ah, maintenance-free
Starting:	Electric
Max Power:	77 kW / 103 hp @ 8500 rpm
Max Torque:	93 Nm / 68.6 lb-ft @ 6750 rpm
Clutch:	Multiple-disc wet clutch (anti hopping), mechanically operated
Transmission:	Claw-shift 6-speed gearbox integrated in crankcase
Final Drive:	Endless O-ring chain with shock damping in rear wheel hub
Primary Ratio:	1.821
Secondary ratio:	2.765
Gear Ratios:	1st 2.833, 2nd 2.067, 3rd 1,600, 4th 1.308, 5th 1,103, 6th 0,968
Frame:	Bridge-type frame, steel shell construction, load bearing engine
Front Suspension:	43mm Upside-down telescopic fork, rebound and compression damping adjustable
Front Wheel Travel:	230 mm / 9.1 in
Rear Suspension:	Aluminium double-sided swinging arm, directly linked WAD central spring strut, spring base and rebound damping adjustable (Optional equipment: sport suspension) (Option: Dynamic ESA)
Rear Wheel Travel:	215 mm / 8.5 in
Front Brakes:	2 x 305mm floating discs, 2-piston floatingcalipers
Rear Brakes:	Single 265mm discs, single-piston floating caliper
ABS System:	BMW Motorrad ABS
Wheels:	Cross-spoke wheels
Front Wheel:	2.15″ x 21″
Rear Wheel:	4.25″ x 17?
Front Tyre:	90/90 x 21
Rear Tyre:	150/70 x R17
Steering Head Angle:	62,0?
Castor:	119.78 mm / 4.7 in
Dimensions:	Length 2270 mm / 89.4in Width 943 mm / 37.1 in (incl. hand protectors)
Wheelbase:	1590 mm / 62.6 in
Seat Height:	870 mm / 34.3 in
Wet Weight:	219 kg / 482.8 lbs
Fuel Capacity:	14.5 Litres / 3.8 US gal
