BMW F 850GS Adventure 40 Years Edition (2021) technical specifications

BMW F 850GS Adventure 40 Years Edition technical specifications

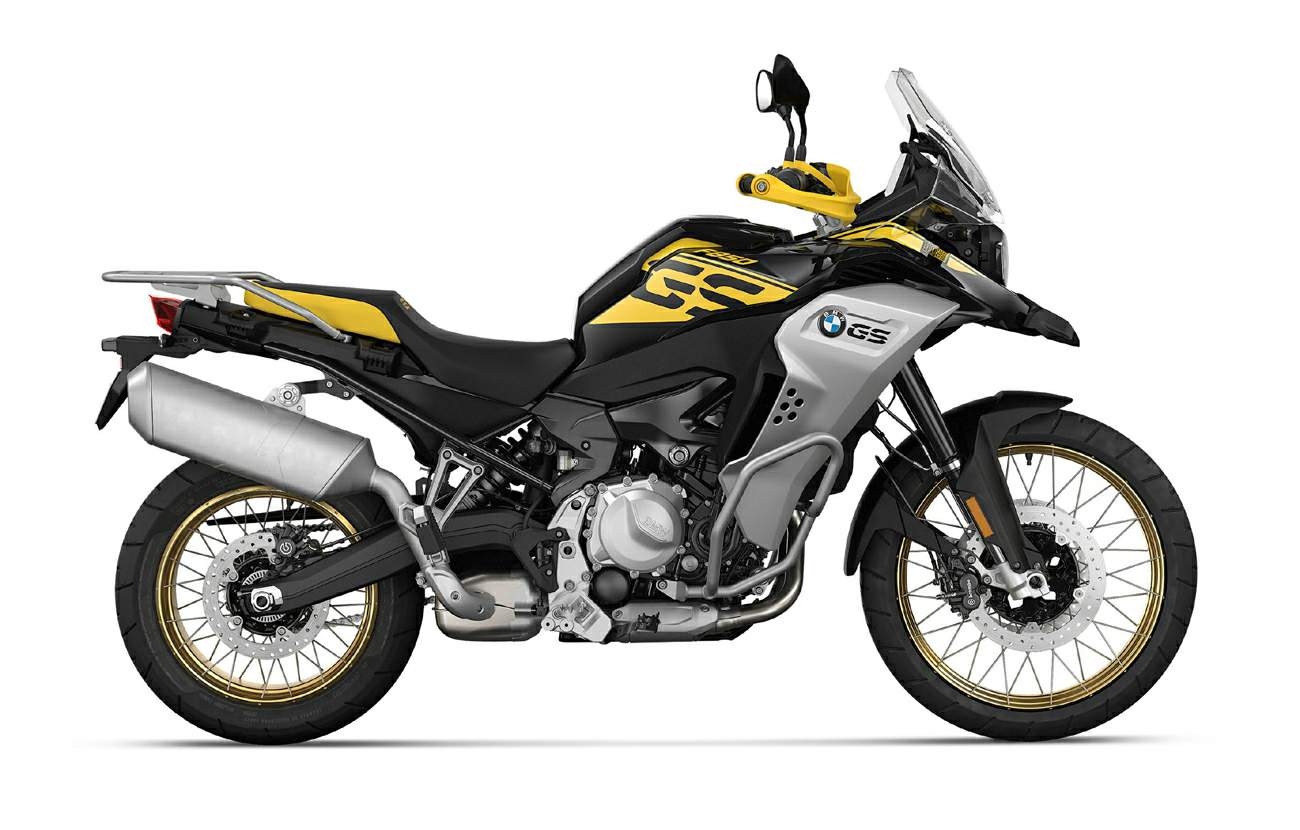

BMW F 850GS Adventure 40 Years Edition is produced in 2021. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 853 cc / 52 cu-in , produces power 90 hp / 66 kW @ 8000 rpm and 86 Nm / 63.4 lb-ft @ 6250 rpm. BMW F 850GS Adventure 40 Years Edition wet weight is 244 kg / 537.9 lbs. BMW F 850GS Adventure 40 Years Edition has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: F 850GS Adventure 40 Years Edition
Years: 2021
Engine: Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Capacity: 853 cc / 52 cu-in
Bore x Stroke: 84 x 77mm
Compression Ratio: 12.7:1
Cooling: Liquid cooled
Lubrication: Dry sump
Induction: Electronic intake injection
Emission: Closed-loop 3-way catalytic converter, emission standard EU-5
Ignition: Knock control and oxygen sensors
Starting: Electric
Max Power: 90 hp / 66 kW @ 8000 rpm
Max Torque: 86 Nm / 63.4 lb-ft @ 6250 rpm
Clutch: Multiplate wet clutch (anti-hopping), mechanically controlled
Transmission: Constant mesh 6-speed gearbox integrated in crankcase
Final Drive: Endless O-ring chain with shock damping in rear wheel hub
Frame: Steel bridge frame in monocoque design, load-bearing engine
Front Suspension: 43 mm USD forks
Front Wheel Travel: 230 mm / 9 in - OE: suspension lowering kit 210 mm / 8.2 in
Rear Suspension: Cast aluminium dual swing arm, central WAD spring strut, spring pre-load hydraulically adjustable, rebound damping adjustable
Rear Wheel Travel: 215 mm / 8.4 in - OE: suspension lowering kit 195 mm / 7.6 in
Front Brakes: 2 x 305mm floating discs, 2 piston floating calipers
Rear Brakes: Single 265mm disc,1 piston floating caliper
ABS: BMW Motorrad ABS (switchable)
Front Wheel: Cross-spoke 21 x 2.15 in
Rear Wheel: Cross-spoke 17 x 4.25 in
Front Tyre: 90/90 21
Rear Tyre: 150/70 R17
Steering Head Angle: 62°
Castor: 124.6 mm / 4.9 in
Dimensions: Length: 2300 mm / 90.5 in Width: 939 mm / 36.9 in (incl mirrors) Height: 1437 mm / 56.5 (excl mirrors)
Wheelbase: 1593 mm / 62.7 in
Seat Height: 875 mm / 34.4 in - OE suspension lowering kit: 815 mm / 32 in - OE low seat: 835 mm / 32.8 in - OE double seat: 860mm / 33.8 in - OA rallye seat: 890 mm / 35 in
Wet Weight: 244 kg / 537.9 lbs
Fuel Capacity: 23 Litres / 6 US gal
