BMW F 650GS (2002) technical specifications

BMW F 650GS technical specifications

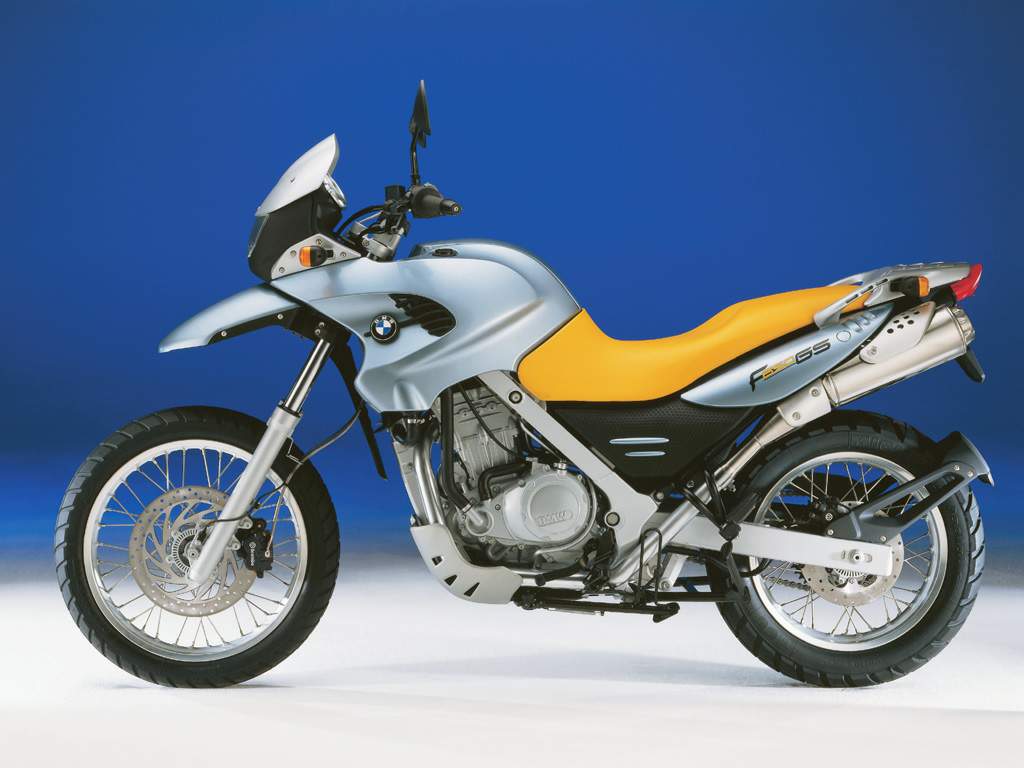

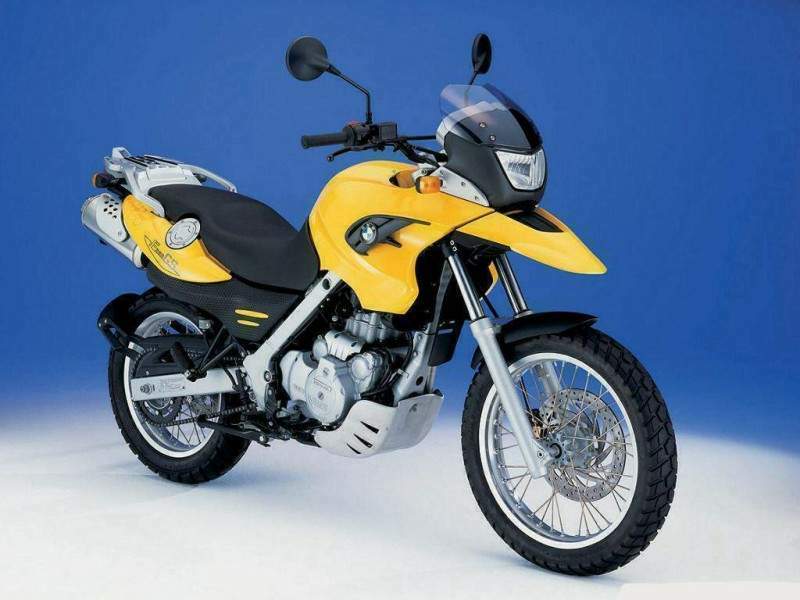

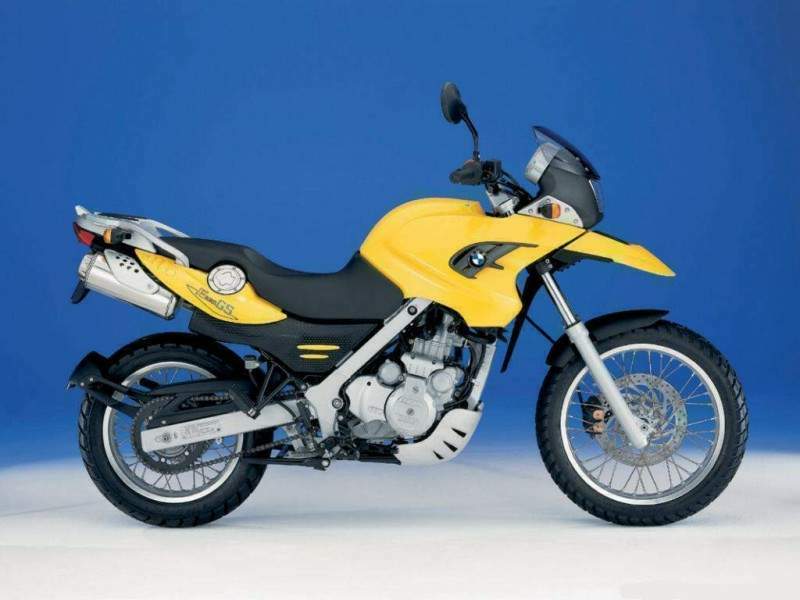

BMW F 650GS is produced in 2002. Engine is Four stroke, single cylinder, DOHC, 4 valves per cylinder, displacement 652 cc / 39.8 cub. in. , produces power 37.3 kW / 50 hp @ 6800 rpm and 60 Nm / 6.12 kgf-m / 44.25 lb-ft. @ 5200 rpm. BMW F 650GS top speed is 183.4 km/h / 114 mph. BMW F 650GS weighs 176 kg / 388 lbs.. BMW F 650GS has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: F 650GS
Years: 2002
Engine: Four stroke, single cylinder, DOHC, 4 valves per cylinder
Capacity: 652 cc / 39.8 cub. in.
Bore x Stroke: 100 x 83mm
Compression Ratio: 11.5:1
Cooling: Liquid cooled
Induction: Fuel induction
Throttle: Cable operated
Lubrication: Wet sump
Ignition: Capacitor Discharge Ignition system
Alternator: Three-phase alternator 400W
Battery: 12V / 12Ah
Starting: Electric
Max Power: 37.3 kW / 50 hp @ 6800 rpm
Max Torque: 60 Nm / 6.12 kgf-m / 44.25 lb-ft. @ 5200 rpm
Clutch: Multiple-disc clutch in oil bath, mechanically operated
Transmission: 5 Speed
Final Drive: Chain
Gear Ratios: 1st 2.75 / 2nd 1.75 / 3rd 1.31 / 4th 1.05 / 5th 0.88:1
Frame: Bridge-type steel section frame with bolted-on rear section
Front Suspension: 41mm Telescopic fork with stabilizer bridge
Front Wheel Travel: 170 mm / 6.6 in
Rear Suspension: Spring setting and rebound stage damping continuously adjustable
Rear Wheel Travel: 165 mm / 6.4 in
Front Brakes: Single ∅300mm disc, 2 piston caliper
Rear Brakes: Single ∅240mm disc, 1 piston caliper
Front Tyre: 100/90-19
Rear Tyre: 130/80-17
Wheels: Wire spoke wheels
Rims, front: 2.50 x 19
Rims, rear: 3.00 x 17
Castor: 123 mm / 4.8 in.
Steering Head Angle: 60.8°
Dimensions: Length: 2175 mm / 85.6 in. Width: 910 mm / 35.8 in. Height: 1265 mm / 49.8 in.
Wheel Base: 1479 mm / 58.2 in.
Seat Height: 780 mm / 30.7 in.
Dry Weight: 176 kg / 388 lbs.
Wet Weight: 191 kg / 421.1 lbs.
Fuel Capacity: 17.3 Litres / 4.6 US gal.
Reserve: Approx. 4.5 Litres / 1.2 US gal.
Consumption Average: 4.7 l/100 km / 60.5 US mpg
Tank Range: 370.2 kms / 230 miles
Standing ¼ Mile: 13.4 sec
Top Speed: 183.4 km/h / 114 mph
