Bimota HB1 (1975) technical specifications

Bimota HB1 technical specifications

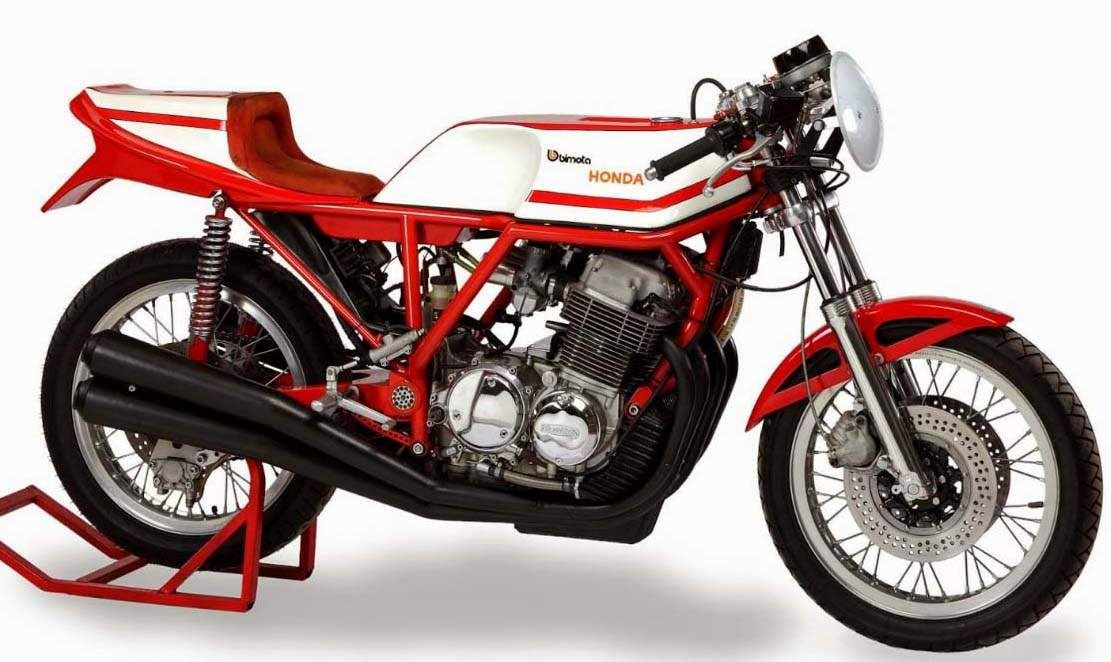

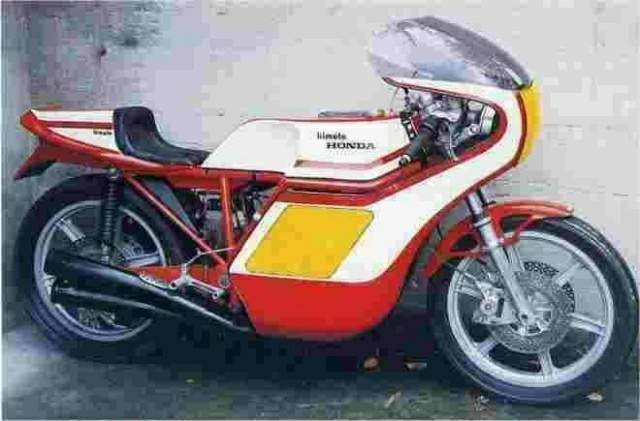

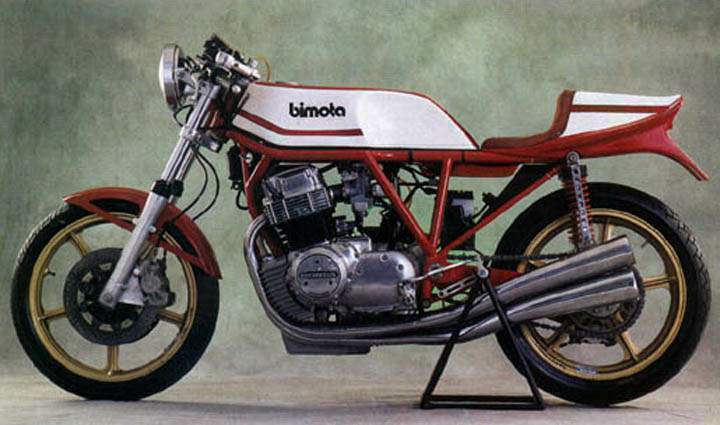

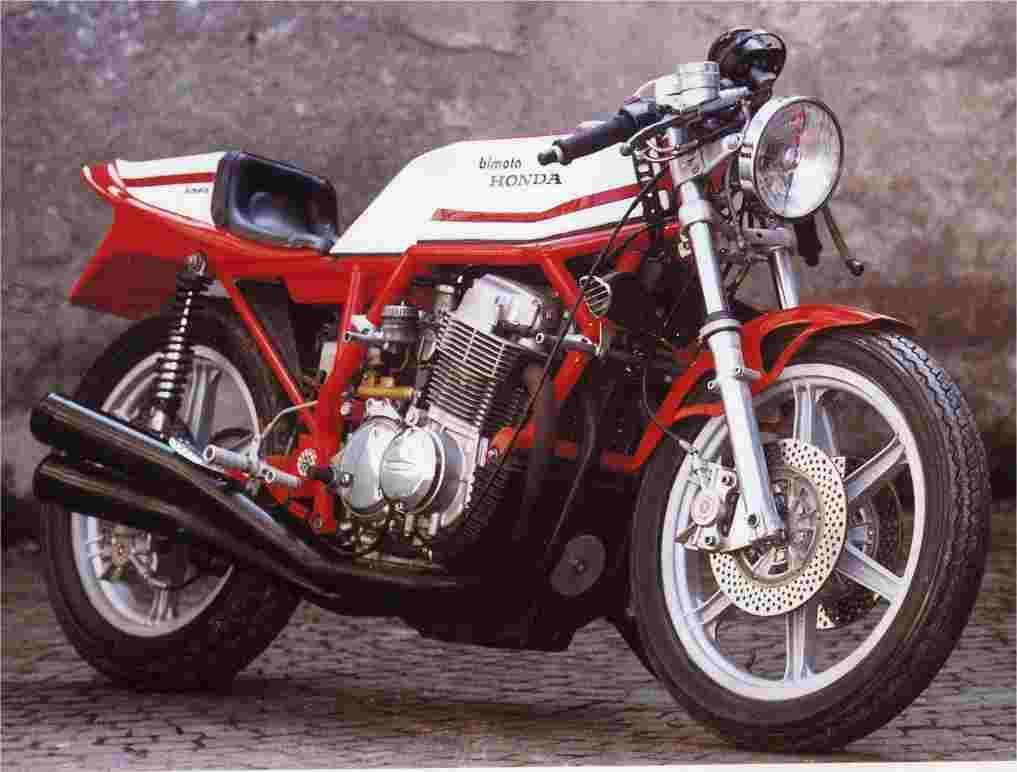

Bimota HB1 is produced in 1975. Engine is Transverse four cylinder, four stroke, SOHC, 2 per cylinder, displacement 736 cc / 44.9 cub. in. , produces power 51.5 kW / 69 hp @ 8000 rpm. Bimota HB1 has 8 photos.

Technical specifications

+ Add to 'Compare list'
Model: HB1
Years: 1975
Production: 12 units (est.)
Engine: Transverse four cylinder, four stroke, SOHC, 2 per cylinder
Capacity: 736 cc / 44.9 cub. in.
Bore x Stroke: 61 х 63 mm
Compression Ratio: 9.2:1
Cooling System: Air / oil cooled
Induction: 4x 28mm Keihin carbs
Ignition: Battery induction coil
Starting: Electric
Max Power: 51.5 kW / 69 hp @ 8000 rpm
Transmission: 5 Speed
Final Drive: Chain
Frame: Double open cradle structure, made of chrome-molybdenum tubes
Front Suspension: Telescopic forks
Rear Suspension: Monoshock
Front Brakes: 2x discs
Rear Brakes: Single disc
