Bimota DB8 Italia (2013) technical specifications

Bimota DB8 Italia technical specifications

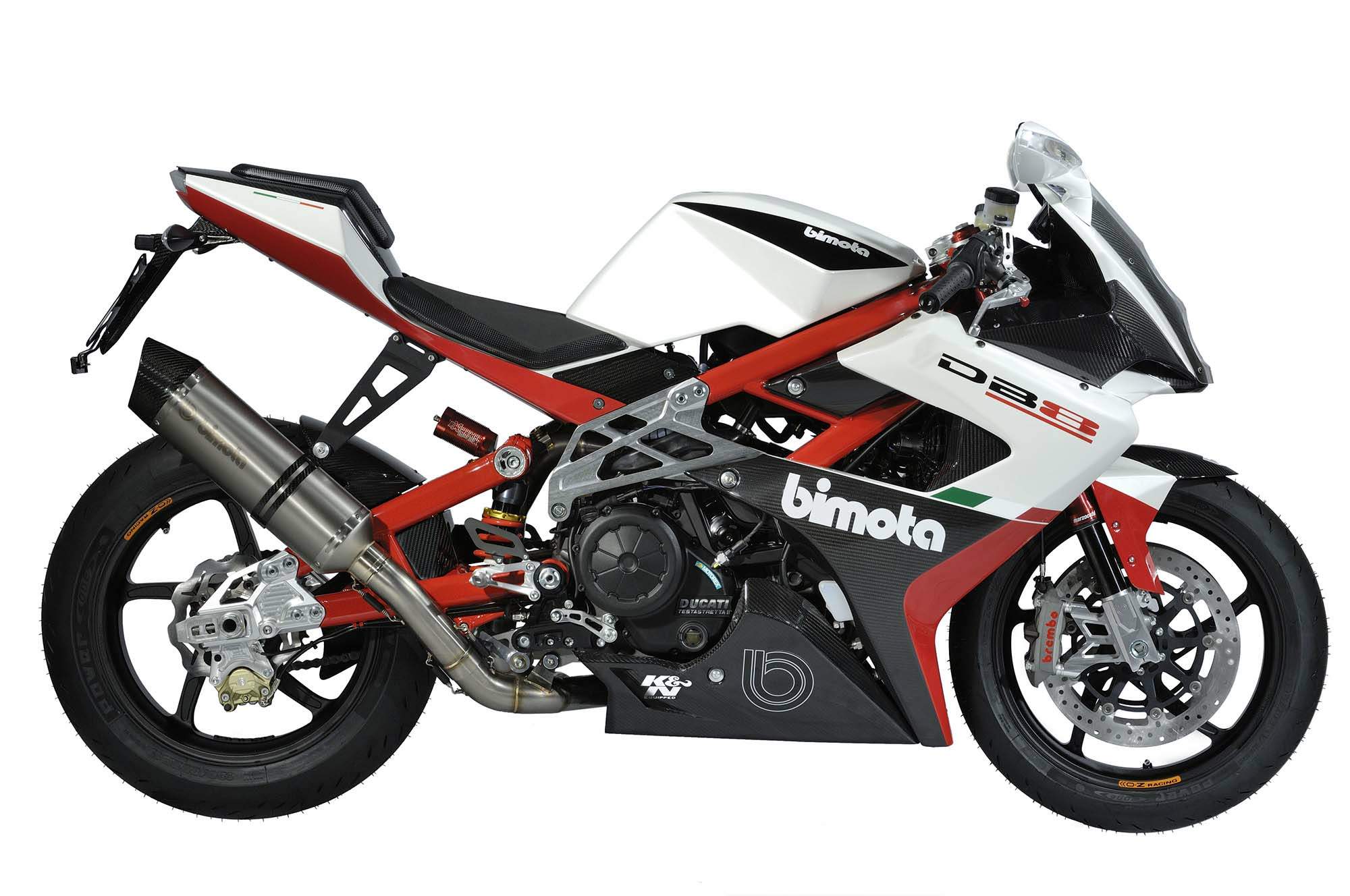

Bimota DB8 Italia is produced in 2013. Engine is Four stroke, 90°“L”twin cylinder, SOHC, desmodromic 4 valve per cylinder,, displacement 1198 cc / 73.1 cub. in. , produces power 170 hp / 125 kW @ 9750 rpm and 131,4 Nm / 13,4 kg-m / 96.9 lb-ft. @ 8000 rpm. Bimota DB8 Italia weighs 178 kg / 392.4 lbs. Bimota DB8 Italia has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: DB8 Italia
Years: 2013
Engine: Four stroke, 90°“L”twin cylinder, SOHC, desmodromic 4 valve per cylinder,
Capacity: 1198 cc / 73.1 cub. in.
Bore x Stroke: 106 x 67.9 mm
Compression Ratio: 12.7:1
Cooling System: Liquid cooled
Induction: Electrically controlled gasoline injection and φ60mm throttle body
Ignition: Magneti Marelli
Starting: Electric
Exhaust: 2 in 1 in 1, stainless steel
Max Power: 170 hp / 125 kW @ 9750 rpm
Max Torque: 131,4 Nm / 13,4 kg-m / 96.9 lb-ft. @ 8000 rpm
Clutch: Wet multiple plates, hydraulic system
Transmission: 6 Speed / chain
Final Drive: Chain
Frame: Welded 39NiCrMo4 tubing and machined 6082 aluminium alloy plates
Front Suspension: Marzocchi USD forks DLC fully adjustable
Rear Suspension: Extreme Tech Monoshock fully adjustable
Front Brakes: 2x 320mm / 12.6 in Brembo floating discs 4 pistons radial Brembo calipers, radial pumps
Rear Brakes: Single 220mm / 8.7 in. floating disc, 2-piston Brembo caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 190/55 ZR17
Rake: 25°
Dimensions: Length 2100 mm / 82.7 in. Height 700 mm / 27.6 in. Height 1115 mm / 43.9 in.
Wheelbase: 1435 mm / 56.5 in.
Seat Height: 800 mm / 31.5 in.
Dry weight: 178 kg / 392.4 lbs
Fuel Capacity: 16 Litres / 4.2 US gal
