Bimota DB1 (1985) technical specifications

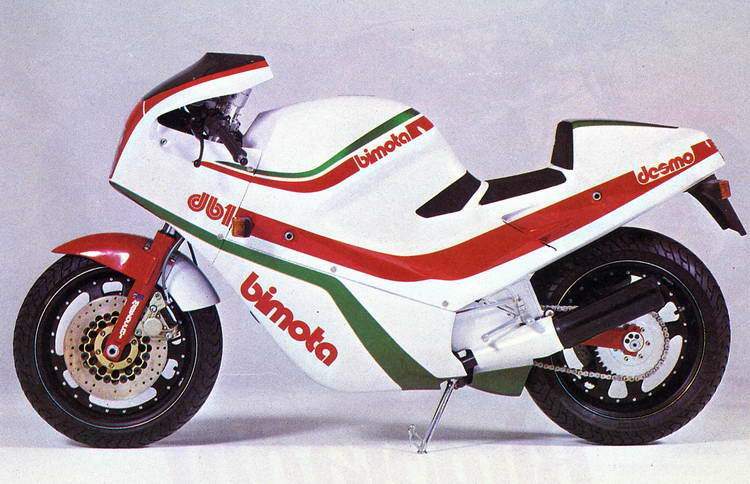

Bimota DB1 is produced in 1985. Engine is Four stroke, 90°“L”twin cylinder, SOHC, desmodromic 2 valves per cylinder , displacement 748 cc / 45.6 cub in , produces power 46.6 kW / 62.5 hp @ 7500 rpm and 61 Nm / 6.22 kgf-m / 45 lb-ft @ 6500 rpm. Bimota DB1 top speed is 223.7 km/h / 139 mph. Bimota DB1 weighs 160 kg / 352.7 lbs. Bimota DB1 has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	DB1
Years:	1985
Engine:	Four stroke, 90°“L”twin cylinder, SOHC, desmodromic 2 valves per cylinder
Capacity:	748 cc / 45.6 cub in
Bore x Stroke:	88 x 61.5 mm
Compression Ratio:	9.3:1
Cooling System:	Air cooled
Induction:	2x 36mm Dell' Orto PHF36 carbs
Ignition:	Borsch
Starting:	Electric
Max Power:	46.6 kW / 62.5 hp @ 7500 rpm
Max Power Rear Tyre:	42.5 kW / 57 hp @ 7500 rpm
Max Torque:	61 Nm / 6.22 kgf-m / 45 lb-ft @ 6500 rpm
Transmission:	5 Speed
Final Drive:	Chain
Front Suspension:	41.7mm / Telescopic M.1.R Marzocchi with 4-way rebound damping
Rear Suspension:	Rising rate linkage with Marzocchi shocks with adjustable preload 11 position compression damping
Front Brakes:	2x 280mm discs 1 piston calipers
Rear Brakes:	Single 260mm disc
Front Tyre:	130/80 V16
Rear Tyre:	160/80 V18
Dry Weight:	160 kg / 352.7 lbs
Fuel Capacity:	20 Litres / 5.3 US gal
Consumption Average:	5.7 l/100 km / 41 mpg
Top Speed:	223.7 km/h / 139 mph
Road Test:	Bimota DB1, Ducati Paso, Ducati 750F1 1986 Moto.Journal La.Moto Motosprint PS Magazine
