Technical specifications
|
| Model: |

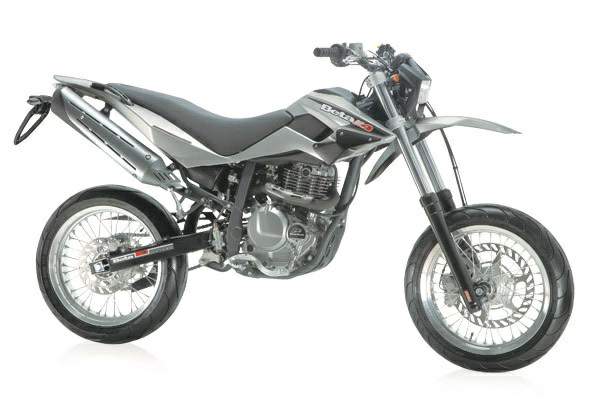

M4 Motard |
| Years: |
2007-08 |
|
Engine:
|
Four stroke, single cylinder, SOHC, 4 valves
|
|
Capacity:
|
349 cc / 21.3 cu in
|
|
Bore x Stroke:
|
79 x 71.2 mm
|
|
Compression Ratio:
|
9.5:1
|
|
Cooling System:
|
Air
|
|
Induction:
|
Mikuni BEST 33
|
|
Ignition:
|
Electronic
|
|
Starting:
|
Electric
|
|
Max Power:
|
19.2 kW / 25.8 hp @ 6600 rpm
|
|
Max Torque:
|
28.4 Nm / 2.9 kgf-m / 20.9 lb-ft @ 6050 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Steel, double cradle
|
|
Front Suspension:
|
28 mm Ø hydraulic forks
|
|
Front Wheel Travel:
|
200 / 7.9 in
|
|
Rear Suspension:
|
Single shock adjustable spring preload, 220mm wheel travel
|
|
Rear Wheel Travel:
|
220 mm / 8.7 in
|
|
Front Brakes:
|
Single 310 mm Ø disc
|
|
Rear Brakes:
|
Single 220 mm Ø disc
|
|
Front Tyre:
|
120/70 -17
|
|
Rear Tyre:
|
150/60 -17
|
|
Dimensions:
|
Length: 2159 mm / 85.0 in Width: 860 mm / 33.9 in
|
|
Wheelbase:
|
1410 mm / 55.5 in
|
|
Ground Clearance:
|
305 mm / 12.0 in
|
|
Seat Height:
|
870 mm / 34.3 in
|
|
Dry Weight:
|
133 kg / 293 lbs
|
|
Fuel Capacity:
|
10.5 Litres / 2.8 US gal
|
|
Consumption Average:
|
3.5 L/100 km / 28.7 km/l / 67.5 US mpg
|
|
Standing ¼ Mile:
|
16.1 sec / 123.5 km/h / 76.7 mph
|
|
Top Speed:
|
133.2 km/h / 82.8 mph
|
