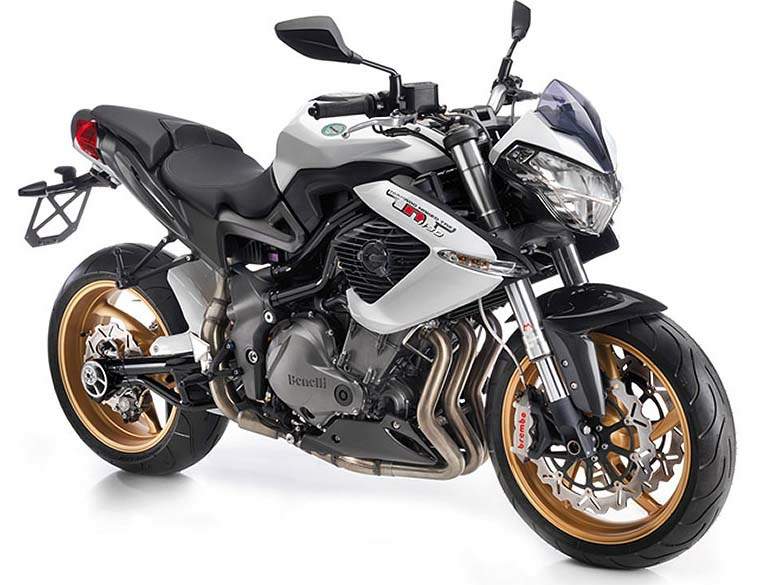

Benelli TNT 1130 (2013) technical specifications

Benelli TNT 1130 technical specifications

Benelli TNT 1130 is produced in 2013. Engine is Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder, displacement 1130 , produces power 95 kW /129 hp @ 8500 rpm and 110 Nm / 11.2 kgm / 81.1 lb-ft @ 5250 rpm. Benelli TNT 1130 weighs 205 kg / 452 lbs. Benelli TNT 1130 has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: TNT 1130
Years: 2013
Engine: Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Capacity: 1130
Bore x Stroke: 88 x 62 mm
Cooling System: Liquid cooled
Compression Ratio: 11.2:1
Lubrication: Wet sump
Induction: Electronic injection with 1 injector per cylinder
Exhaust: With catalytic converter and oxygen sensor
Spark Plug: NGK CR9E
Ignition: Electronic injection
Electric: Electric
Max Power: 95 kW /129 hp @ 8500 rpm
Max Torque: 110 Nm / 11.2 kgm / 81.1 lb-ft @ 5250 rpm
Clutch: Wet clutch with hydraulic command
Transmission: 6 Speed
Final Drive: Chain drive, ratio 16:37
Primary Drive: 44/79
Gear Ratio: 1st 14/39 / 2nd 18/35 / 3rd 21/32 / 4th 23/30 / 5th 24/28 / 6th 26/27
Frame: Decomposable, front steel trestle, rear aluminium alloy casting
Front Suspension: Ø50 mm upside-down fork, with hydraulic extension, compression and spring preload adjustments
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Steel tube trestle swingarm, rear dumper with hydraulic adjustment (extension, high and low speed compression) and spring preload assembled with progressive link
Rear Wheel Travel: 120 mm / 4.7 in
Front Brakes: 2 x 320 mm Ø discs, 4 piston caliper
Rear Brakes: Single 240 mm Ø disc, 2 piston caliper
Front Tyre: 120/70-17
Rear Tyre: 190/50-17
Dimensions: Length: 2000 mm / 78.7 in Width: 790 mm / 31.1 in Height: 1050 mm / 41.3 in
Wheelbase: 1419 mm / 55.9 in
Seat Height: 830 mm / 32.7 in
Ground Clearance: 135 mm / 5.3 in
Dry Weight: 205 kg / 452 lbs
Wet Weight: 215 kg / 474 lbs
Fuel Capacity: 16 Litres / 4.2 US gal
