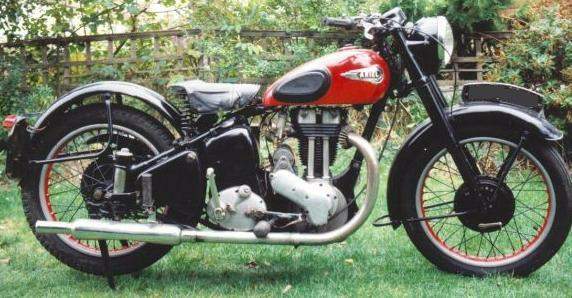

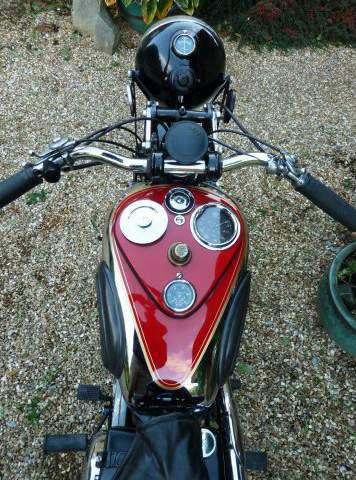

Ariel NH 350 Red Hunter (1945-59) technical specifications

Ariel NH 350 Red Hunter is produced in 1945-59. Engine is Four stroke, single cylinder, OHV, displacement 346 cc / 21.1 cu in , produces power 14.2 kW / 19.4 hp @ 5800 rpm. Ariel NH 350 Red Hunter top speed is 117 km/h / 72.7 mph. Ariel NH 350 Red Hunter weighs 159 kg / 350.5 lbs. Ariel NH 350 Red Hunter has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	NH 350 Red Hunter
Years:	1945-59
Engine:	Four stroke, single cylinder, OHV
Capacity:	346 cc / 21.1 cu in
Bore x Stroke:	72 x 85 mm
Cooling System:	Air cooled
Compression Ratio:	6.2:1 (after 1957: 7.5:1)
Exhaust:	1-into-1
Induction:	Carburetor
Ignition:	Magneto/flywheel
Battery:	6V
Starting:	Kick start
Max Power:	14.2 kW / 19.4 hp @ 5800 rpm
Clutch:	Dry, multiplate
Transmission:	4-Speed
Final Drive:	Chain
Gear Ratios:	(20T sprocket) 1st 15.3 / 2nd 10.1 / 3rd 7.3 / 4th 5.7:1 (19T sprocket) 1st 16.1 / 2nd 10.6 / 3rd 7.7 / 4th 6.0:1 (18T sprocket) 1st 17.0 / 2nd 11.2 / 3rd 8.2 / 4th 6.4:1 (17T sprocket) 1st 18.0 / 2nd 11.9 / 3rd 8.7 / 4th 6.8:1
Frame:	Semi-double cradle
Front Suspension:	Telescopic fork, hydraulic
Rear Suspension:	Plungers
Front Brakes:	Drum
Rear Brakes:	Drum
Wheels:	Steel, laced wire spokes
Front Rim:	3.00 x 20
Rear Rim:	3.25 x 19
Dimensions:	Length: 2180 mm / 85.8 in Width: 640 mm / 25.2 in
Dry Weight:	159 kg / 350.5 lbs
Fuel Capacity:	11 L / 2.9 US gal
Top Speed:	117 km/h / 72.7 mph
