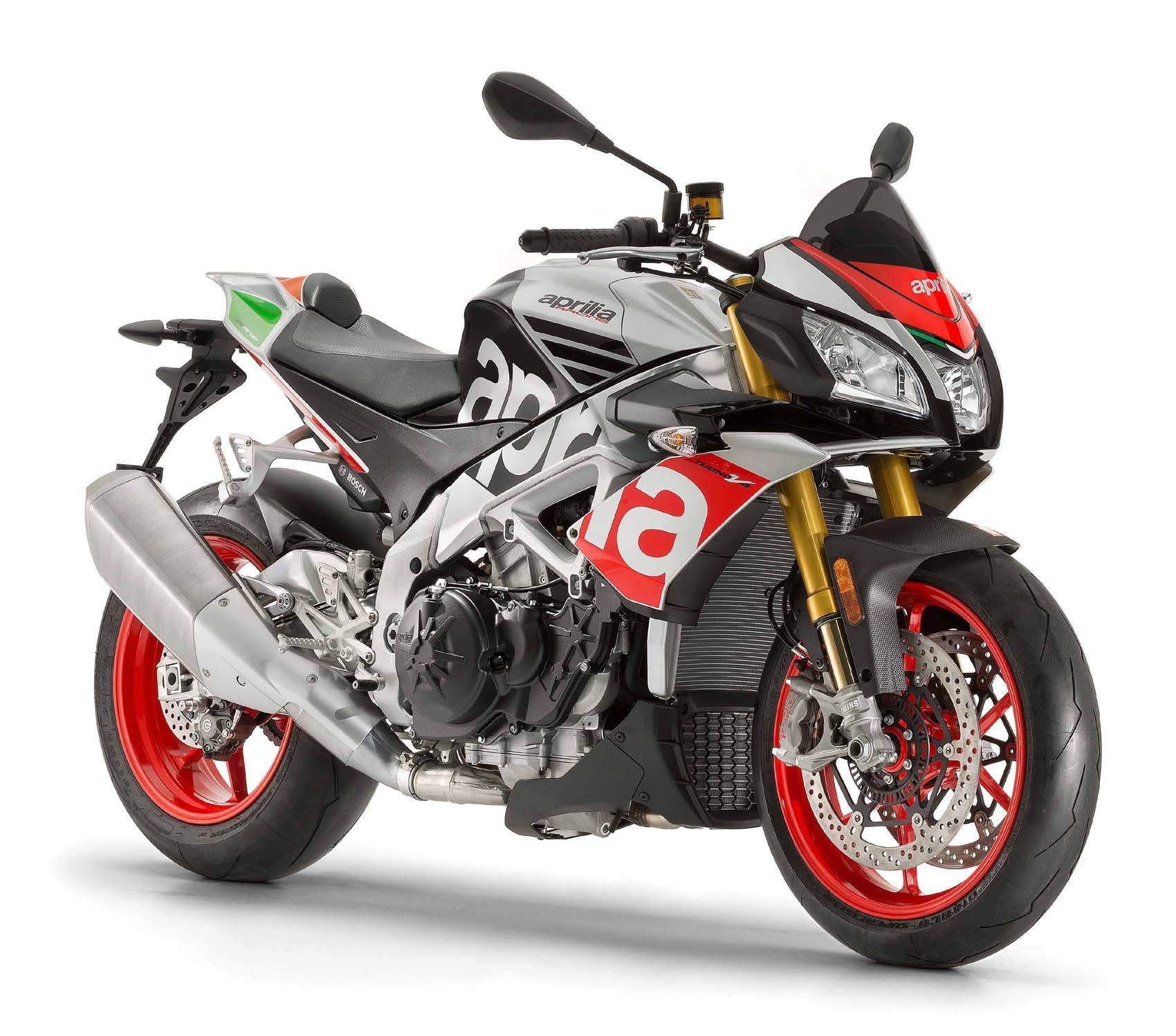

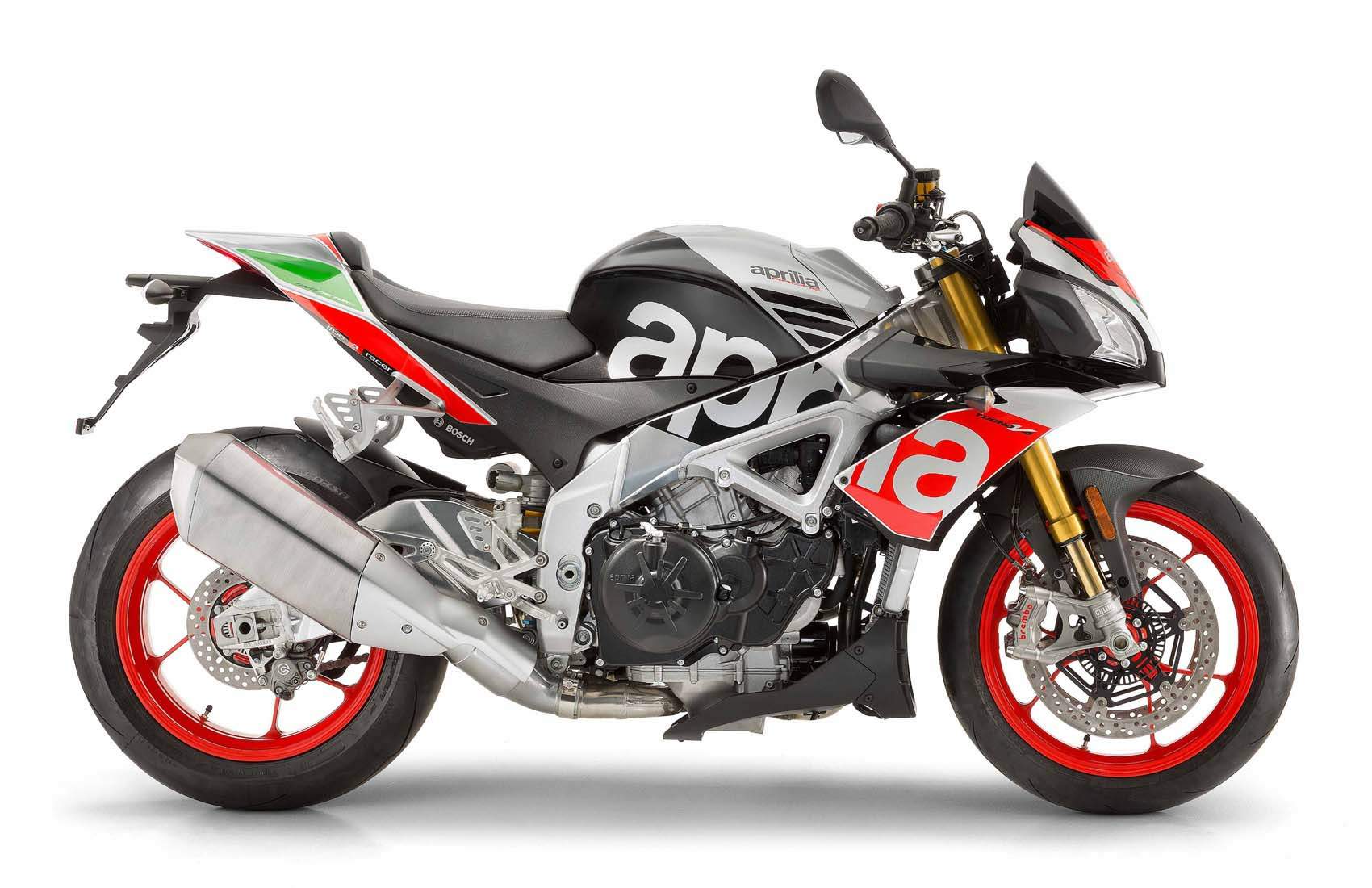

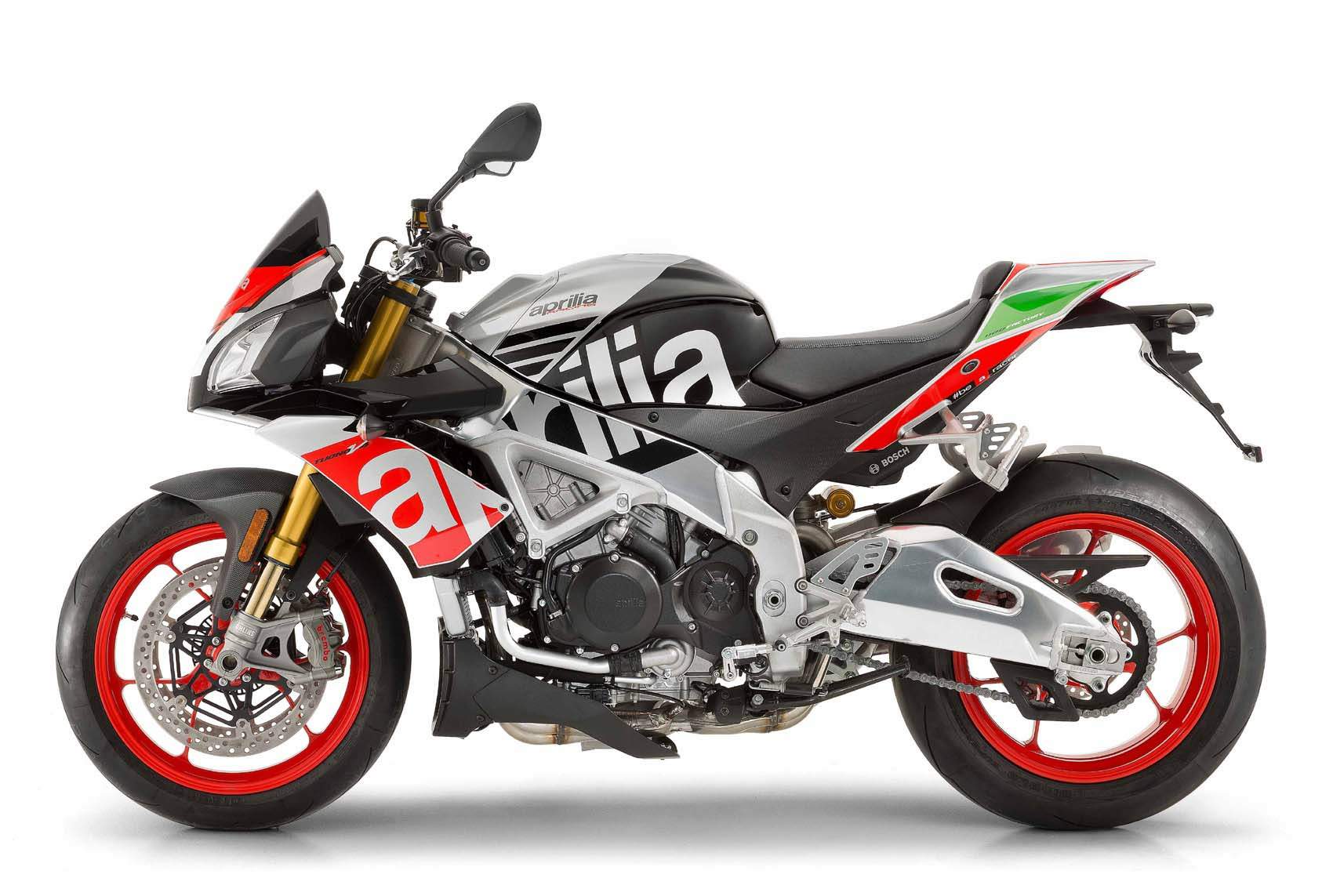

Aprilia Tuono V4 1100 Factory. (2017-18) technical specifications

Aprilia Tuono V4 1100 Factory. is produced in 2017-18. Engine is Longitudinal 65? V4 cylinder, 4-stroke, DOHC, four valves per cylinder, displacement 1077 cc / 65.7 cu in , produces power 129 kW / 175 hp @ 11000rpm and 120 Nm / 12.2 kgf-m / 88.5 lb-ft @ 9000 rpm. Aprilia Tuono V4 1100 Factory. weighs 184kg / 405 lbs. Aprilia Tuono V4 1100 Factory. has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Tuono V4 1100 Factory.
Years:	2017-18
Engine:	Longitudinal 65? V4 cylinder, 4-stroke, DOHC, four valves per cylinder
Capacity:	1077 cc / 65.7 cu in
Bore x Stroke:	81 x 52.3 mm
Cooling System:	Liquid cooled
Lubrication:	Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Exhaust:	4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter. Euro 4
Induction:	4 Weber-Marelli 48-mm throttle bodies with 4 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R (Road)
Ignition:	Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and "stick-coil"-type coils
Alternator:	Flywheel mounted 450 W alternator with rare earth magnets
Starting:	Electric
Max Power:	129 kW / 175 hp @ 11000rpm
Max Torque:	120 Nm / 12.2 kgf-m / 88.5 lb-ft @ 9000 rpm
Transmission:	6 Speed, gear lever with Aprilia Quick Shift electronic system (aQS)
Final Drive:	Chain,
Gear Ratio:	1st 39:15 (2.600) / 2nd 33:16 (2.063) / 3rd 34:20 (1.700) / 4th 32:22 (1.455) / 5th 34:26 ( 1.308) / 6th 33:27 (1.222)
Primary Drive:	Straight cut gears and integrated flexible coupling
Primary Drive Ratio:	73:44 (1.659)
Final Drive Ratio:	42:16 (2.625)
Frame:	Aluminium dual beam chassis with pressed and cast sheet elements. Sachs steering damper
Front Suspension:	Upside-down "one by one" ?hlins fork with TIN surface treatment fork, ? 43 mm stanchions. Forged aluminium radial calliper mounting bracket. Completely adjustable spring preload and hydraulic compression and rebound damping.
Front Wheel Travel:	120 mm/ 4.7in
Rear Suspension:	Double braced aluminium swingarm; mixed low thickness and sheet casting technology. ?hlins Racing monoshock with piggy-back, fully adjustable in: spring preload, wheelbase length, hydraulics in compression and rebound. APS progressive linkages
Rear Wheel Travel:	130mm / 5.1in
Front Brakes:	Dual 320 mm floating stainless steel discs with lightweight stainless steel rotor with 6 studs [aluminium flange] Brembo M432 monobloc radial callipers with 4 x ?32 mm opposing pistons. Sintered pads. Axial pump master cylinder and metal braided brake hoses.
Rear Brakes:	?220 mm diameter disc; Brembo floating calliper with two ?32 mm separate pistons. Sintered pads. Master cylinder with built in reservoir and metal braided hose.
ABS:	Bosch 9MP ABS, adjustable to 3 maps equipped with RLM (can be disabled).
Wheels:	Cast aluminium wheels with 3 split spoke design.
Front Rim:	3.50x17"
Rear Rim:	6.00 x 17"
Front Tyre:	120/70 ZR 17
Rear Tyre:	190/55 ZR 17 (alternative: 190/50 ZR 17; 200/55 ZR 17)
Rake:	24.7?
Trail:	99.7mm / 3.9in
Seat Height:	825 mm / 32.5in
Dry Weight:	184kg / 405 lbs
Fuel Capacity:	18.5 Litres /4.9 US gal
Reserve:	4 Litres / 1.1 USgal
