Technical specifications
|
| Model: |

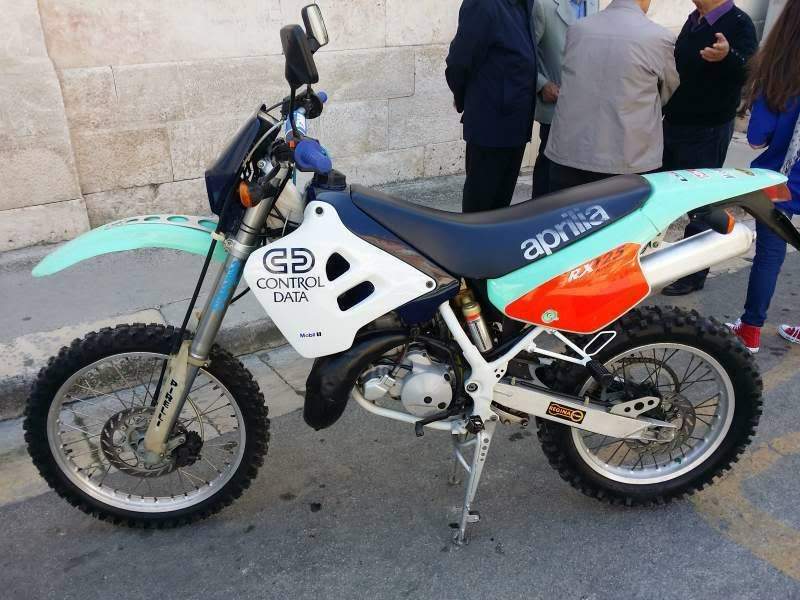

RX 125R |
| Years: |
1992-93 |
|
Engine:
|
Single cylinder, two stroke, Rotax 123, Gilardoni 2 cylinder/head
|
|
Capacity:
|
124.8 cc / 7.6 cu in
|
|
Bore x Stroke:
|
54 x 54.5 mm
|
|
Compression Ratio:
|
12.5:1
|
|
Induction:
|
VHSB34 LD carburetor
|
|
Starting:
|
Electric and kick
|
|
Max Power:
|
25.7 kW / 34.5 hp@ 10800 rpm
|
|
Max Torque:
|
21.6 Nm / 2.2 kgf-m / 15.9 lb-ft @ 10500 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
#520 Chain, 12T to 17T pinion gear, 49T spur gear
|
|
Front Suspension:
|
Marzocchi upside down fork
|
|
Rear Suspension:
|
Swingarm with single shock absorber, Aprilia Progressive System with fully adjustable Boge Sachs shock absorber
|
|
Front Brakes:
|
Single Ø 250 mm disc
|
|
Rear Brakes:
|
Single Ø 220mm disc
|
|
Front Tyre:
|
90/90-21
|
|
Rear Tyre:
|
120/90-18
|
|
Dry Weight:
|
105 kg / 231 lbs
|
|
Wet Weight:
|
122 kg / 269 lbs
|
|
Fuel Capacity:
|
11.5 L / 3.0 US gal / 2.5 Imp gal
|
|
Consumption Average:
|
6.7 L/100 km / 15.0 km/l / 36 USmpg
|
|
Braking 60 km/h / 32 mph - 0:
|
14.3 m / 46.9 ft
|
|
Braking 100 km/h / 67 mph - 0:
|
42.9 m / 140.7 ft
|
|
Standing ¼ Mile:
|
14.9 sec / 127.0 km/h / 79 mph
|
|
Top Speed:
|
132.2 km/h / 82.1 mph
|
