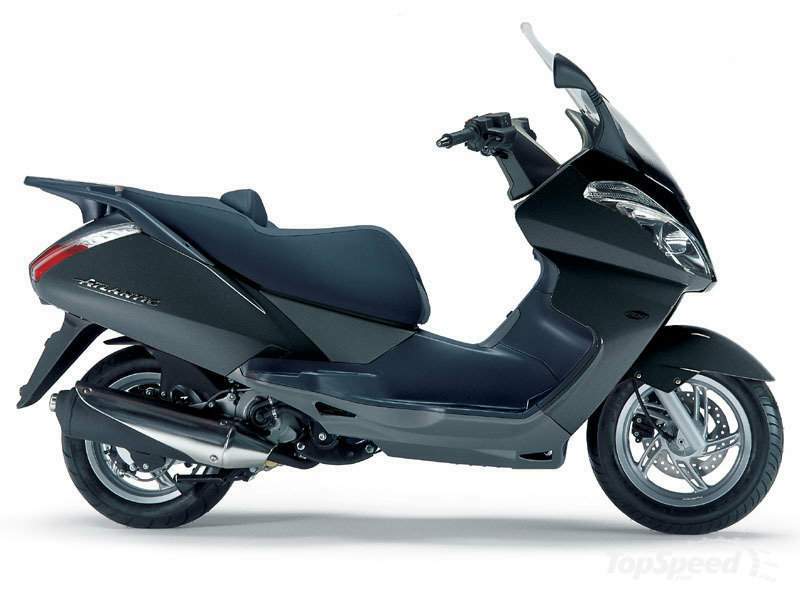

Aprilia Atlantic 200 (2008-10) technical specifications
Aprilia Atlantic 200 is produced in 2008-10. Engine is Four stroke, single cylinder, SOHC, 4 valves per cylinder, displacement 199 cc / 12.1 cu in , produces power 10 kW / 13.5 hp @ 8000 rpm and 11 Nm / 1.1 kgf-m / 8.1 lb-ft @ 7250 rpm. Aprilia Atlantic 200 weighs 160 kg / 353 lbs. Aprilia Atlantic 200 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Atlantic 200 |
| Years: | 2008-10 |
| Engine: | Four stroke, single cylinder, SOHC, 4 valves per cylinder |
| Capacity: | 199 cc / 12.1 cu in |
| Bore x Stroke: | 72 x 48.6 mm |
| Compression Ratio: | 11.5:1 |
| Cooling System: | Liquid cooled |
| Lubrication: | Wet casing, forced lubrication |
| Induction: | Keihin CVK 7C Ø 30 mm or Walbro WVF 7D Ø29 mm |
| Ignition: | Electronic, Magneti Marelli |
| Starting: | Electric |
| Battery: | 12V, 12Ah |
| Spark Plug: | NGK CR8EB |
| Max Power: | 10 kW / 13.5 hp @ 8000 rpm |
| Max Torque: | 11 Nm / 1.1 kgf-m / 8.1 lb-ft @ 7250 rpm |
| Clutch: | Centrifugal |
| Transmission: | Automatic |
| Final Drive: | Belt |
| Frame: | Single beam with double stacked cradle |
| Rake: | 27° |
| Trail: | 104 mm / 4.1 in |
| Front Suspension: | Hydraulic forks, Ø 35 mm |
| Front Wheel Travel: | 105 mm / 4.1 in |
| Rear Suspension: | Single hydraulic shock, adjustable preload |
| Rear Wheel Travel: | 110 mm / 4.3 in |
| Front Brakes: | Single Ø 240 mm disc, with hydraulic transmission |
| Rear Brakes: | Single Ø 190mm disc, with hydraulic transmission, combined with front |
| Front Wheel: | 3.00 x 13 |
| RearWheel: | 3.00 x 13 |
| Front Tyre: | 110/90 -13 |
| Rear Tyre: | 130/70 -13 |
| Dimensions: | Length: 2100 mm / 82.7 in Width: 900 mm / 35.4 in Height: 1400 mm / 55.1 in |
| Wheelbase: | 1470 mm / 57.9 in |
| Seat Height: | 790 mm / 31.1 in |
| Ground Clearance: | 190 mm / 7.5 in |
| Dry Weight: | 160 kg / 353 lbs |
| GVWR: | 370 kg / 816 lbs |
| Fuel Capacity: | 10.5 Litres / 2.8 US gal |
| Fuel Reserve: | 1.3 Litres / 0,4 US gal |
