Adler Junior M100 (1955) technical specifications

Adler Junior M100 technical specifications

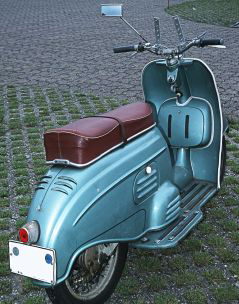

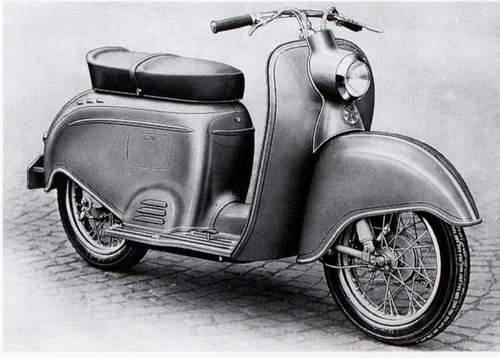

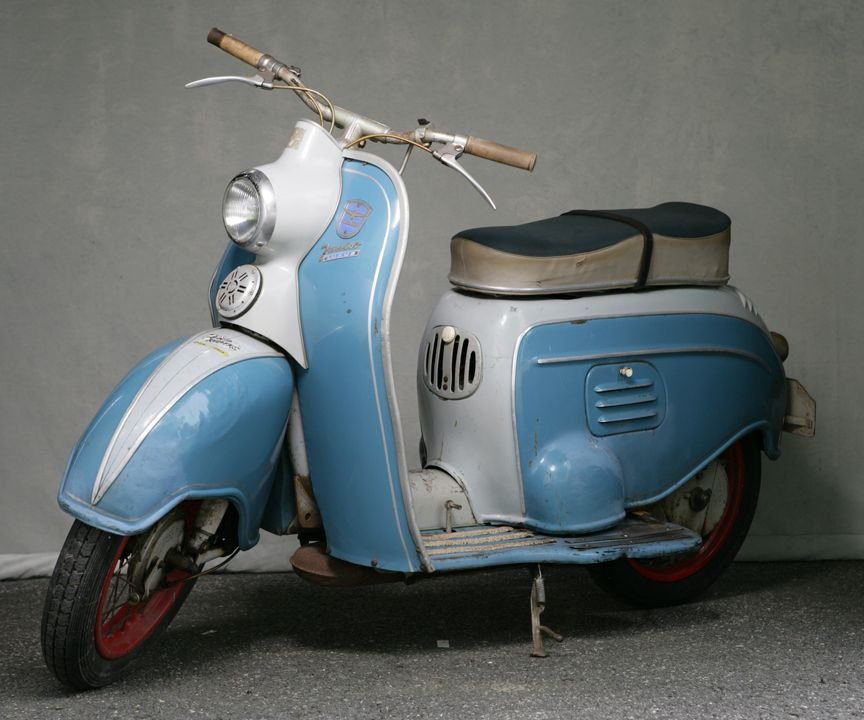

Adler Junior M100 is produced in 1955. Engine is 1 cylinder, 2 stroke, displacement 98 cc / 6 cub in. , produces power 2.8 kW / 3.75 hp. Adler Junior M100 top speed is 70 km/h / 43.5 mph. Adler Junior M100 wet weight is 108 kg / 238 lbs. Adler Junior M100 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Junior M100
Years: 1955
Engine: 1 cylinder, 2 stroke
Capacity: 98 cc / 6 cub in.
Bore x Stroke: 50 x 50 mm
Cooling: Air cooled
Lubrication: Petrol oil mix 25:1
Clutch: Multi plate, wet, cable operated
Starting: Electric
Ignition: Magneto
Carburetor: Single built into block
Exhaust System: Twin, steel
Max Power: 2.8 kW / 3.75 hp
Compression Ratio: 1: 5.75
Transmission: 3 Speed gearbox, foot changes
Final Drive: Chain
Frame: Double cradle steel frame
Front suspension: Leading link
Rear suspension: Twon shock, plunger
Front Wheel: 3.00 x 14 in
Brake: Drum, 125 mm
Wet Weight: 108 kg / 238 lbs
Fuel Capacity: 7 L / 1.8 US gal
Top Speed: 70 km/h / 43.5 mph
Colours: Light Blue-Green metallic
